FindBuytool FB131H 13 "Planeadora de espessura de madeira de benchtop com cabeça de cortador helicoidal

SKU: 1040000130001
$699.99 USD $799.99
Imposto incluído Os custos de envio são calculados aquando da finalização da compra.

Payment & Security

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Description
  • Spec
  • Reviews
  • $699.99 USD $799.99

1800W Powerful Motor

15 AMP 1800W motor; Blade Speed: 10,000 RPM; Feed Rate: 330 inches/minute (27.5 FPM). This powerful motor boasts low interference, low noise, smooth operation, high speed, high temperature resistance, and a long lifespan (over 200,000 hours), ensuring stability and reliability in woodworking. It can handle larger, deeper hardwood cuts, providing the performance you need to complete a wide range of tasks.

Helical Cutterhead with 40 Inserts

FB131H thickness planer with a helical cutter head provides a smoother finish compared to other planers. Its 4-row, 40 tungsten carbide inserts work in tandem to reduce chatter marks and snipe, producing a smooth, tear-free shear cut with minimal noise. This portable thickness planer delivers a flawless finish on all types of hardwoods, weathered wood, or engineered wood.

Precision Planing

Our Findbuytool FB131H surface thickness planer excels in precision, offering fine adjustments for wood thickness. It comes with a convenient raise/lower handle that allows for fine adjustments of the cut depth. By rotating this handle, you can control accurately displays the height of the cutter blades to a maximum of 6 in.

Features of FB131H

  • Portability and Space-Saving

    This thickness planer is compact and portable. When the infeed and outfeed tables are extended, it can accommodate wood pieces up to 13 inches in width, providing ample support for larger planing tasks. Once the tables are retracted, the thickness planer’s dimensions are just 19.5 in × 14.2 in × 17.5 in, allowing for convenient storage in any corner of your workspace.

  • Motor Overload Protector

    For additional safety, when the total current exceeds 20A, the 20A overcurrent protector will automatically cut off the power supply to protect your safety.

  • Low Dust Planing

    This wood thickness planer is equipped with a vacuum suction port(diameter 2.36 inches), making dust collection straightforward. This chip removal device connects to a vacuum cleaner, efficiently pulling debris away from the cutter head and expelling it out of the machine. This feature helps keep your workroom cleaner.

  • Locking Lever

    By dampening the effects of vibration and other disturbances, this locking bar ensures that the workpiece remains fixed and aligned throughout the milling process. Not only does it increase operator safety, it also improves the smoothness of the wood, making it an important component for high-precision planing.

  • Depth of Indicator

    This high-precision part designed to view the cutting depth in real-time. It allows you to make precise adjustments to the cutting depth, helping to maintain a consistent and uniform cutting depth throughout the process, ultimately improving surface quality and reducing errors

  • 40 Carbide Insert Knives

    40 Replacement inserts, sharp and durable

  • Smooth Planing

    Smooth cut without tear-outs and snipe

  • Low Noise Level

    At least 50% lower noise than a traditional planer

  • Stable and Precise

    Achieving a even thickness with a tolerance of <0.1mm

  • Low Noise Level

    This benchtop thickness planer operates as quietly as 83 decibels, by minimizing noise during use. This quieter operation helps reduce fatigue and creates a more pleasant working environment, allowing you to focus on your woodworking tasks without being distracted by excessive noise.

  • Stability and Build Quality

    This portable thickness planer is built with a sturdy base and 4-column frame.Holes on the base of the FB131H allow it to be securely fixed to a workbench, ensuring the machine remains stable during operation. This design minimizes vibration and ensures stability during operation, which can achieve best consistent planing results.

  • Visible Thickness Scale

    Thickness scale of this dimensional thickness planer clearly displays the planing thickness up to 0.1 mm. This allows you to easily monitor and adjust the cutting depth without having to check the internal measurement.

  • Quick Limit Block

    The quick limit block revolutionizes the milling workflow by allowing you to quickly set up and reach a specified height. Once the desired height is configured, the machine can mill at that height continuously without constant adjustments. This feature is particularly useful for tasks that require repetitive milling at a fixed height, increasing efficiency and productivity for high-volume operations.

Technical Details

Max Planing Width: 13 inch
Max Planing Height: 6-1/4 inch
Max Planing Depth: 1/16 inch
Power: 120V 60Hz 15Amp
No Load Speed: 10000RPM
Feed Rate: 27.5 FPM

Evaluation By Influencers

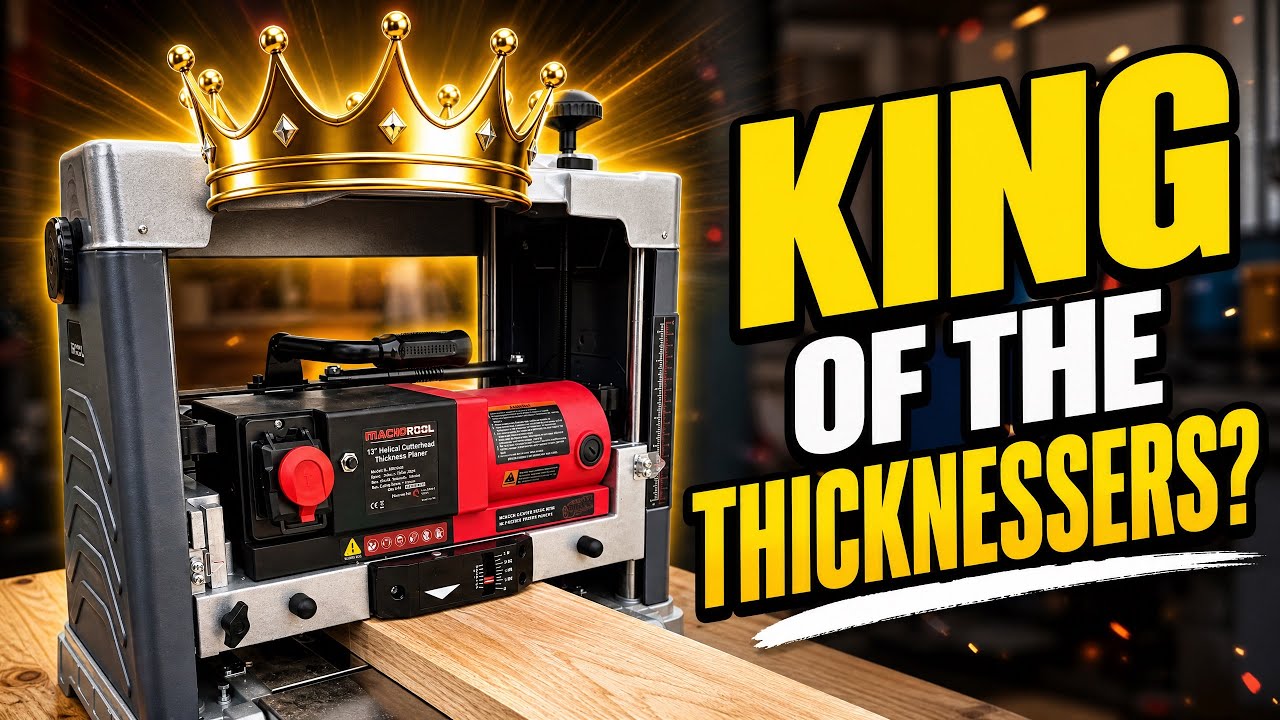

Revealing the Affordable Helical Cutterhead for Woodworkers
Affordable 13" Benchtop Planer with Helical Cutter Head!
High End Wood Planing On The Cheap?? || FindBuyTool Helical Wood Planer FB131H 13"

FB131H FAQs

What's the size of the FB131H?

Overall Size(L × W × H): 27.4inch × 20.7inch × 18.9 inch

Folded Size(L x W x H): 19.5inch × 14.2inch × 17.6 inch

Dust Port Diameter:2.36 inches

Weight: 76 lb

Can I replace the knives?

Yes, you can buy the knives from here: 15x15x2.5mm R150 carbide insert

How long will it take to receive my order?

Orders usually take 3-5 business days to arrive from our local warehouse in the USA. For information on shipping to other countries, please contact us.

How much does it weigh?

The item weighs 77 lbs

Where is the user manual?

Yes, Click here to see user manual of FB131H

Can the preset thickness be set at 3/8 inch?

Yes, the minimum planing thickness of the planers is 1/16"

What's your warranty policy?

Findbuytool offers a one-year warranty on all thickness planer, for more specific warranties, please check our warranty policy.

What's your return policy?

All customers have a 30 DAY MONEY BACK GUARANTEE
For more specific return and refund, pls check our return policy.

Avaliações de Clientes

Seja o primeiro a escrever um comentário
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
FindBuyTool

FindBuytool FB131H 13 "Planeadora de espessura de madeira de benchtop com cabeça de cortador helicoidal

$699.99 USD $799.99

A plaina helicoidal de 13 "com 40 facas de inserção de carboneto de tungstênio de alta qualidade produz simplesmente o melhor resultado de corte. O FindBuyTool tem fornecido as cabeças de cortador helicoidal/em espiral para atualizar os planejadores e juntas. Com a plaina de madeira do FB131H 13 ", você pode aproveitar os benefícios de uma cabeça de cortador helicoidal pré-instalada, garantindo os melhores resultados para seus projetos de madeira. Esta plaina de espessura com uma cabeça de cortador helicoidal de 4 linhas pode produzir um corte de cisalhamento suave e sem lágrimas com ruído mínimo.

CARACTERÍSTICAS

  • Poder: O motor poderoso de 2 hp e 15 amp permite cortes mais rápidos e suaves.
  • Precisão e estabilidade: O design de 4 colunas e a fundação anti-wobble permitem aumentar a precisão e a estabilidade incomparável, reduzindo o snipe durante o uso.
  • Tipo de cabeça do cortador: Cabeça helicoidal com espirais de 4 linhas e 40 inserções de carboneto.
  • Acabamento de superfície superior: 40 inserções de carboneto minimizarão as rasgos e permitirão um corte de cisalhamento suave em todos os tipos de bosques.
  • Economia de tempo: As inserções de carboneto indexível de quatro lados podem ser alteradas de maneira rápida e fácil. Se a inserção do carboneto ficar monótona ou danificada, basta girar para uma borda fresca quando necessário, sem o incômodo de afiar.
  • Produzindo lascas menores: Melhorando o desempenho do seu sistema de coleta de poeira.
  • Segurança: O disjuntor impede que o motor sobrecarregue.
  • Alças de transporte montadas no lado: Conveniente para você levá -lo aonde quer que seja necessário.
  • Envio: 3 a 6 dias à sua porta.
  • Garantia de produto: Inclui uma garantia limitada do fabricante de 1 ano para garantia de qualidade.
  • Extensões de tabela de infecção/saída.

Informação técnica

Largura do planejamento máximo 13 polegadas
Altura de planejamento máximo 6-1/4 polegadas
Profundidade máxima de aplainamento 1/16 polegada
Poder 120V 60Hz 15amp
Sem velocidade de carga 10000 rpm
Taxa de alimentação 27.5 FPM

Aplicativo

  • Madeira dura/madeira macia/madeira artificial
Ver produto
