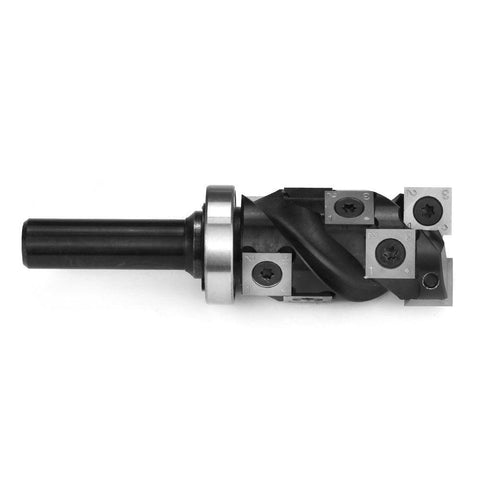

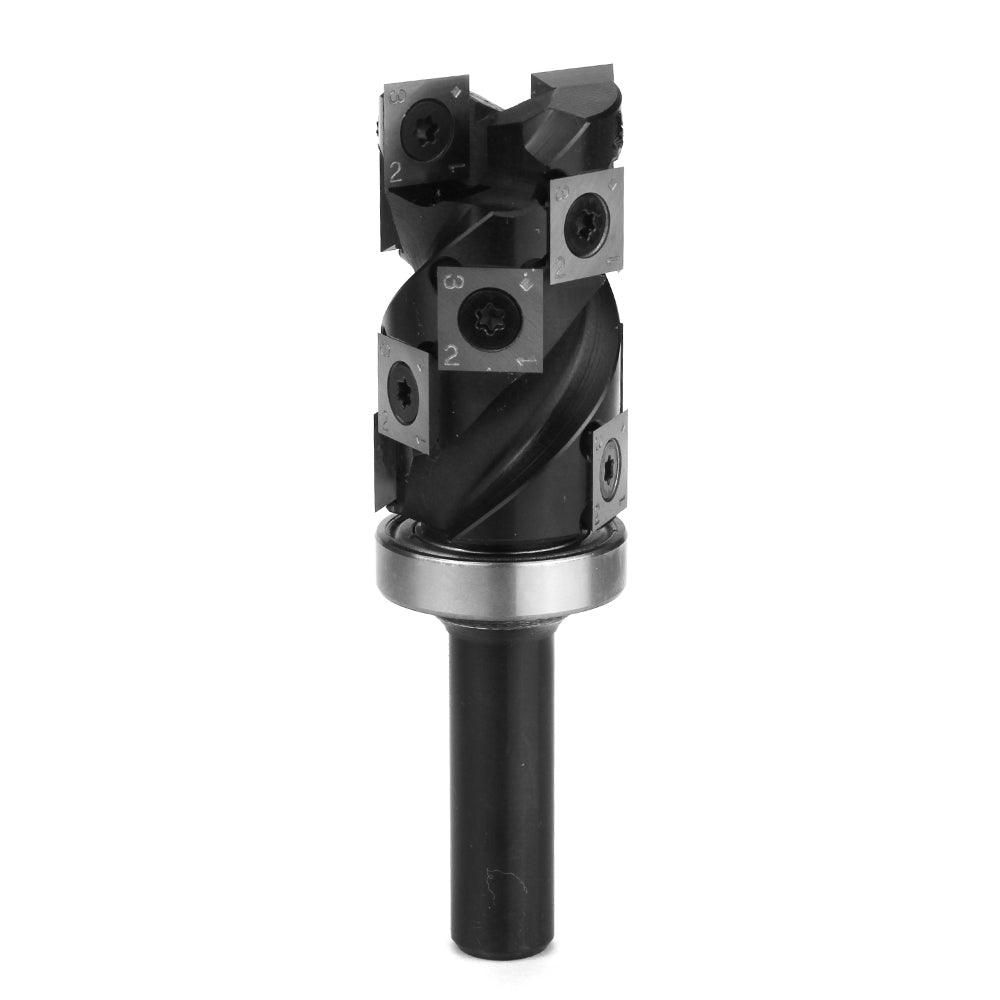

Spiral Flush Trim Router Bit with Carbide Insert, Top Bearing
Spiral Flush Trim Router Bit with Carbide Insert, Top Bearing - Router Bit Only is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trusted Delivery
- Description
- Reviews
Unlike brazed or solid carbide flush trim router bits, our spiral flush trim router bit with carbide inserts has outstanding cutting performance and cutting efficiency, and the spiral groove design achieved excellent chip evacuation. It can satisfy your multiple project requirements.
Findbuytool offers a spiral flush trim router bit with top-bearing for your edge trimming, template, or duplicate heavy-duty project needs. Resulting in excellent cutting performance. Allows you to make a pattern below the workpiece, and the replaceable carbide inserts make it more cost-effective. Mostly increasing your woodworking productivity and efficiency.
- Size: 12.7mm(shank) x 30mm(dia) x 50mm(cutting length). / 1/2in(shank)x1.18in(dia)x1.96in(cutting length).
- With top-bearing, ideal for template, duplicate, and pattern work.
- The spiral groove design is for better chip evacuation.
- The 10 carbide insert knives provide smooth and clean cutting.
- The recommended torque spec for the insert knife is 3Nm.
- With black oxide coating, for better corrosion resistance and anti-rust.
- In addition to the flush trim function, this bit can also achieve bottom cleaning.
- The replaceable blade specification: 12 x 12 x 2.2-4R-0.5.
- Maximum RPM:8000
- The bearing is replaceable, you can buy the bearing from here.
Notes:
- Please use the bit better on a router table or CNC machines.
- When cutting harder or denser wood, please decrease the cutting output and feed slowly.
- If you cutting the plywood, please clean the blade after working to prolong.
- For your safety, the cutting height of the workpiece must be below the cutting height of the router bit, or it may cause wobble and kickback.
- Always wear proper safety gear when working.
Technical information
Technical information

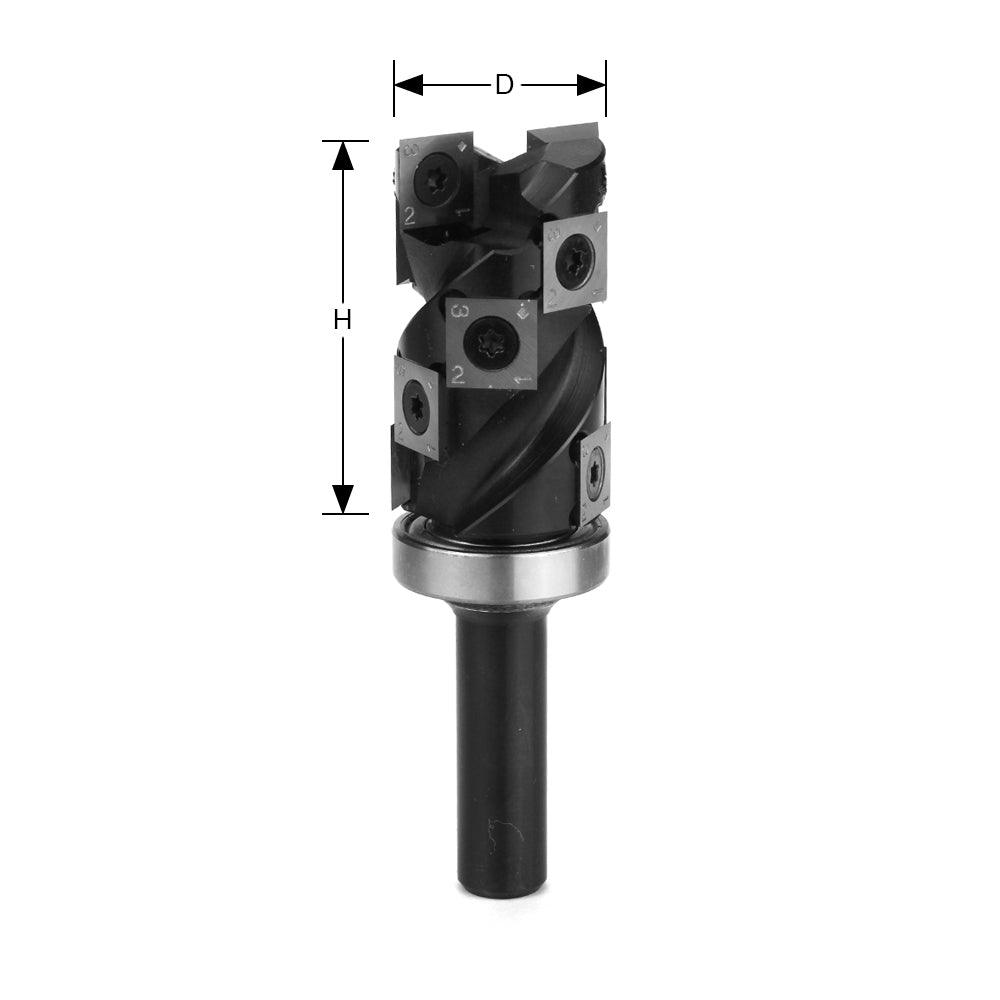

Shank Size(mm) | D (mm) | H (mm) | Material |
---|---|---|---|
12.7 | 30 | 50 | Tungsten Carbide |
Package Includes
Package Includes
- 1 x Spiral flush trim router bit
Machine
Machine
- CNC Router
- Fixed Base Router
- Bench Top Router Table
SHIPPING DIAMETER
SHIPPING DIAMETER
- UNIT
- Pcs
- Net Weight
- 390g
- Package
- In Plastic Box
- Package Size
- 40 x 40x 130mm
