Findbuytool offers the solid carbide compression flush trim router bit that is designed for edge trimming, perfect for working on various types of wood materials. With better chip evacuation. Both 1/4 and 1/2 shank are available.
Featured
Featured
- Made of premium high-speed steel and tungsten carbide.
- Industrial grade, super strength, and durable.

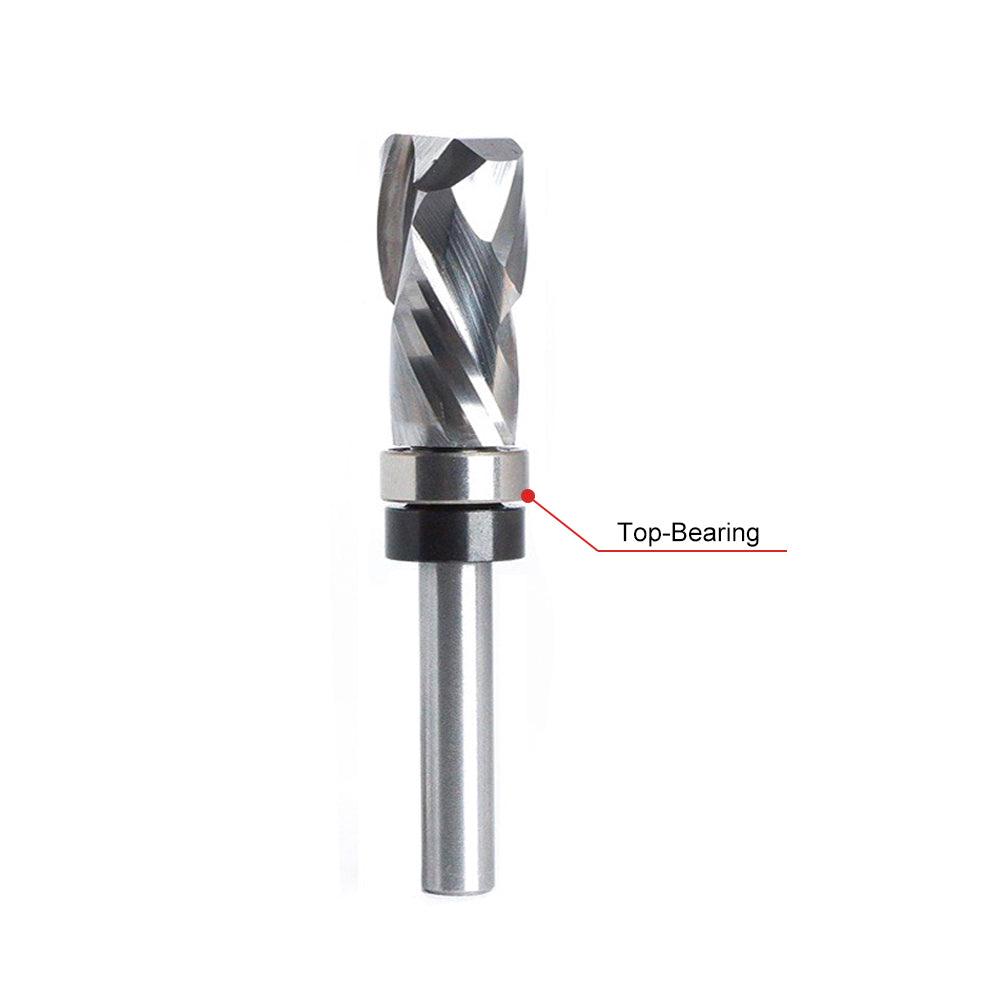

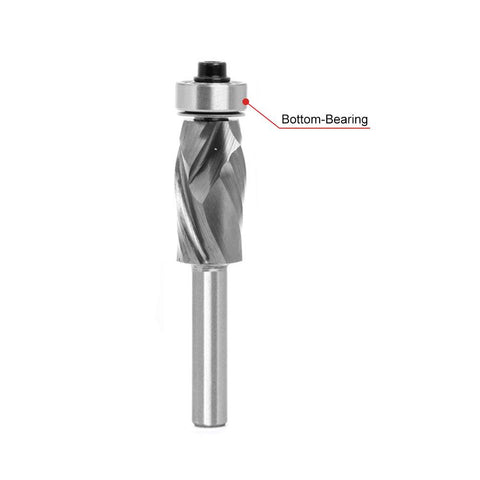

- With top or bottom bearing, ideal for top or bottom patterns working, resulting in a cleaner edge cutting.
- The compression design makes the router bit perform well in milling and also has better chip evacuation.
- The stable knife body can ensure high-quality trimming, and the anti-kickback gives a secure while edge trimming.
Note: Please confirm which bearing type you need before you order.
Technical information
Technical information

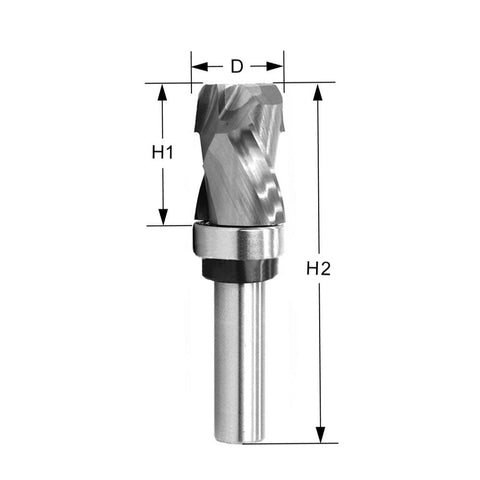

| Shank Size(in.) | D (in.) | H1 (in.) | H2 (in.) | Type | Material | Maximum RPM |
|---|---|---|---|---|---|---|
| 1/2 | 7/8 | 1-3/16 | 3-7/20 | Bottom Bearing | HSS and Tungsten Carbide | 18000 |
| 1/4 | 1/2 | 1 | 2-5/8 | Bottom Bearing | HSS and Tungsten Carbide | 18000 |
| 1/2 | 1/2 | 1 | 2-5/8 | Top Bearing | HSS and Tungsten Carbide | 18000 |
| 1/4 | 7/8 | 1-5/32 | 3-1/2 | Top Bearing | HSS and Tungsten Carbide | 18000 |
| 1/4 | 1/2 | 1 | 3-3/16 | Top Bearing | HSS and Tungsten Carbide | 18000 |
Package Includes
Package Includes
- 1 x Solid carbide flush trim router bit
Machine
Machine
- Router Table
- Fixed base router
- CNC Router
SHIPPING DIAMETER
SHIPPING DIAMETER
- UNIT
- Pcs
- Net Weight
- 170g
- Package
- In Plastic Box
- Package Size
- 23x23x75mm
