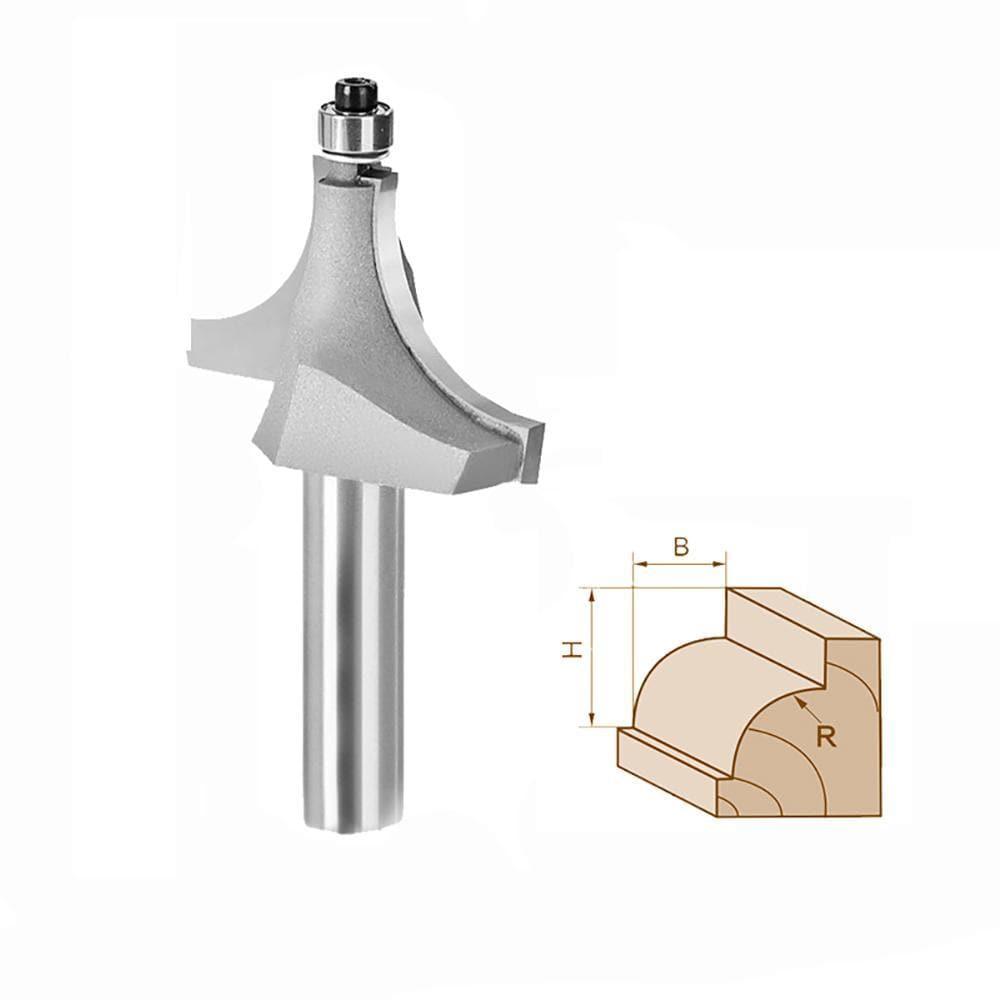

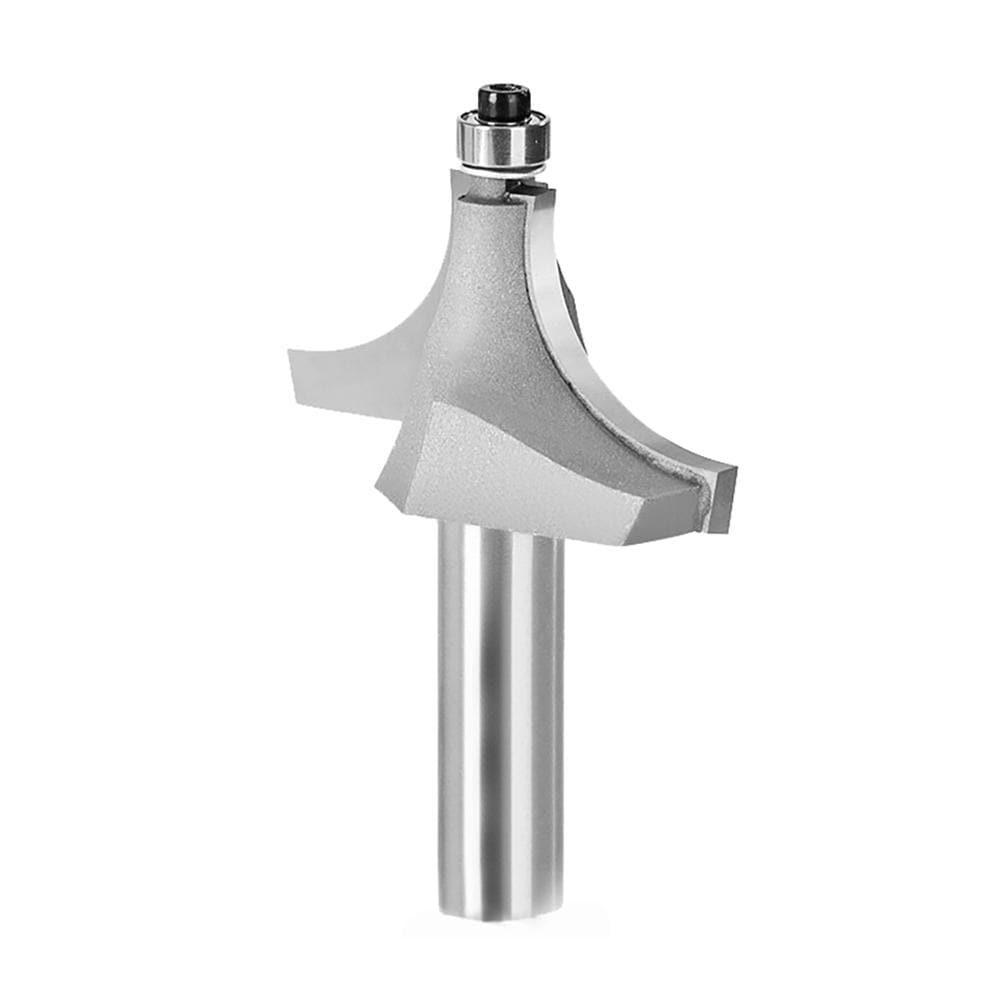

Round Over Bead Edging Router bit-0603
Round Over Bead Edging Router bit-0603 - 1/4x1/8 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Trusted Delivery
- Description
- Reviews
The Round-over bead edging router bits is ideal for adding beautiful profiles to the edges of your workpieces. We provide a range of varied size selections to best fit your multiple requirements. Both 1/4 and 1/2 shank sizes are available.
Featured
Featured
- Industrial standards, made of premium quality material, reliable to use.
- Perfect for leaving a round-over bead shape on the edge of the table, frames, or other furnitures and projects.
- Resulting in a particularly smooth and clean cut.
- The stable cutting process is thanks to the perfect concentricity and balanced knife body.
- Durable and sharp.
Technical information
Technical information

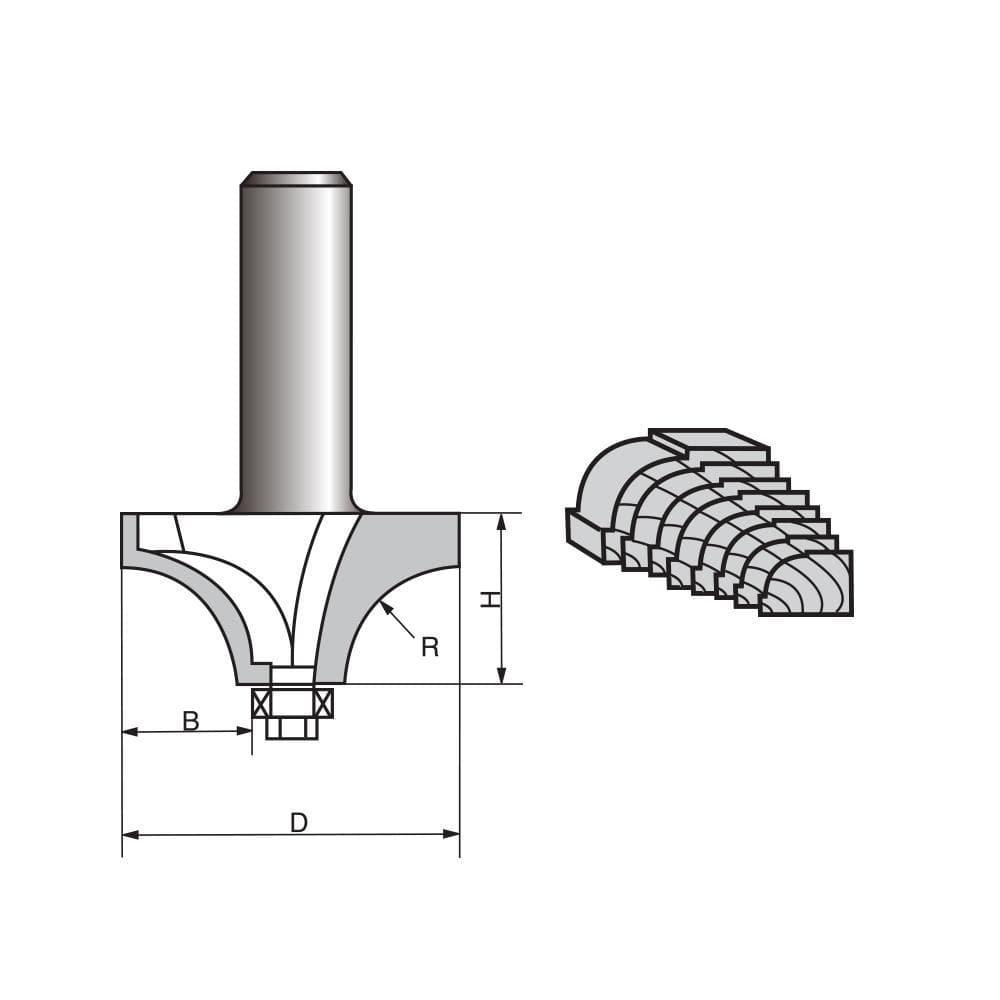

Shank Size x 2R(In.) | D (mm) | R (mm) | B (mm) | H (mm) | Material |
---|---|---|---|---|---|
1/4x1/8 | 15.9 | 1.58 | 3.45 | 12.7 | Tungsten Carbide |
1/4x3/16 | 17.46 | 2.38 | 4.23 | 12.7 | Tungsten Carbide |
1/4 x 1/4 | 19.05 | 3.17 | 5.02 | 12.7 | Tungsten Carbide |
1/4x5/16 | 20.62 | 3.96 | 5.81 | 12.7 | Tungsten Carbide |
1/4 x 3/8 | 22.22 | 4.76 | 6.61 | 12.7 | Tungsten Carbide |
1/4 x 1/2 | 25.4 | 6.35 | 8.2 | 12.7 | Tungsten Carbide |
1/4 x 5/8 | 28.6 | 7.96 | 9.8 | 12.7 | Tungsten Carbide |
1/4 x 3/4 | 31.7 | 9.52 | 11.35 | 15.9 | Tungsten Carbide |
1/4 x 7/8 | 34.9 | 11.1 | 12.9 | 17 | Tungsten Carbide |
1/4x1 | 38.1 | 12.7 | 14.5 | 19.05 | Tungsten Carbide |
1/2 x 1/4 | 19.05 | 3.17 | 5.02 | 12.7 | Tungsten Carbide |
1/2x5/16 | 20.62 | 3.96 | 5.81 | 12.7 | Tungsten Carbide |
1/2 x 3/8 | 22.22 | 4.76 | 6.61 | 12.7 | Tungsten Carbide |
1/2 x 1/2 | 25.4 | 6.35 | 8.2 | 12.7 | Tungsten Carbide |
1/2 x 5/8 | 28.6 | 7.96 | 9.8 | 12.7 | Tungsten Carbide |
1/2 x 3/4 | 31.7 | 9.52 | 11.35 | 15.9 | Tungsten Carbide |
1/2 x 7/8 | 34.9 | 11.1 | 12.9 | 17 | Tungsten Carbide |
1/2x1 | 38.1 | 12.7 | 14.5 | 19.05 | Tungsten Carbide |
1/2 x 1-1/8 | 41.3 | 14.3 | 16.15 | 19.3 | Tungsten Carbide |
1/2 x 1-1/4 | 44.45 | 15.9 | 17.72 | 22.2 | Tungsten Carbide |
1/2 x 1-3/8 | 47.6 | 17.45 | 19.3 | 23.85 | Tungsten Carbide |
1/2 x 1-1/2 | 50.8 | 19.05 | 20.9 | 25.4 | Tungsten Carbide |
1/2 x 1-5/8 | 53.96 | 20.63 | 22.48 | 27.13 | Tungsten Carbide |
1/2 x 1-3/4 | 57.15 | 22.2 | 24.07 | 28.5 | Tungsten Carbide |
1/2 x 1-7/8 | 60.32 | 23.81 | 25.66 | 30.31 | Tungsten Carbide |
1/2x2 | 63.5 | 25.4 | 27.25 | 32 | Tungsten Carbide |
1/2 x 2-1/8 | 66.66 | 26.98 | 28.83 | 33.48 | Tungsten Carbide |
1/2x2-1/4 | 69.84 | 28.57 | 30.42 | 35.07 | Tungsten Carbide |
1/2 x 2-3/8 | 73.02 | 30.16 | 32.01 | 36.66 | Tungsten Carbide |
1/2 x 2-1/2 | 76.2 | 31.75 | 33.6 | 38.25 | Tungsten Carbide |
1/2 x 2-5/8 | 79.37 | 33.33 | 35.18 | 39.83 | Tungsten Carbide |
1/2 x 2-3/4 | 82.55 | 34.92 | 36.77 | 41.42 | Tungsten Carbide |
1/2x 2-7/8 | 85.72 | 36.51 | 38.36 | 43.01 | Tungsten Carbide |
Applications
Applications
- Wood

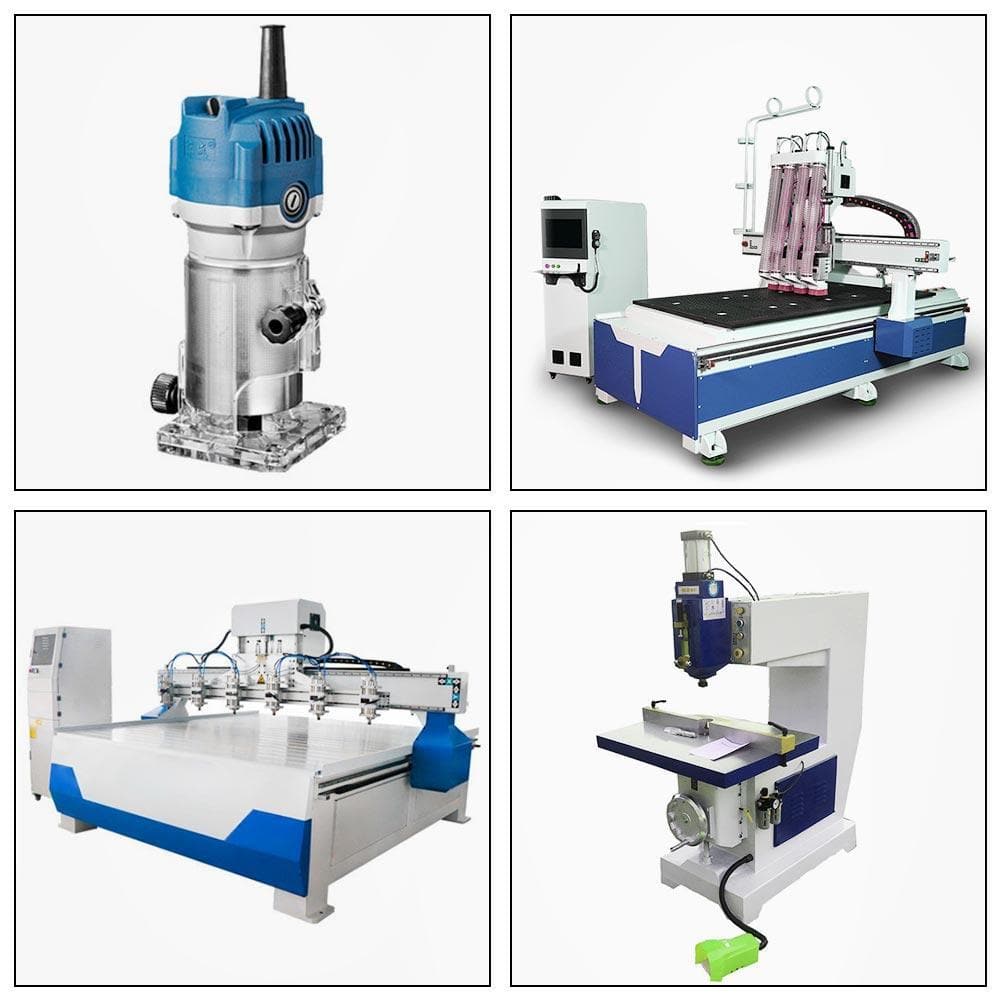

Machine
Machine
- CNC Router
- Fixed Base Router
- Plunge Router
- Bench Top Router Table
SHIPPING DIAMETER
SHIPPING DIAMETER
- UNIT
- Pcs
- Net Weight
- 50
- Package
- In Plastic Box
- Package Size
- 95 x 18 x 18mm
