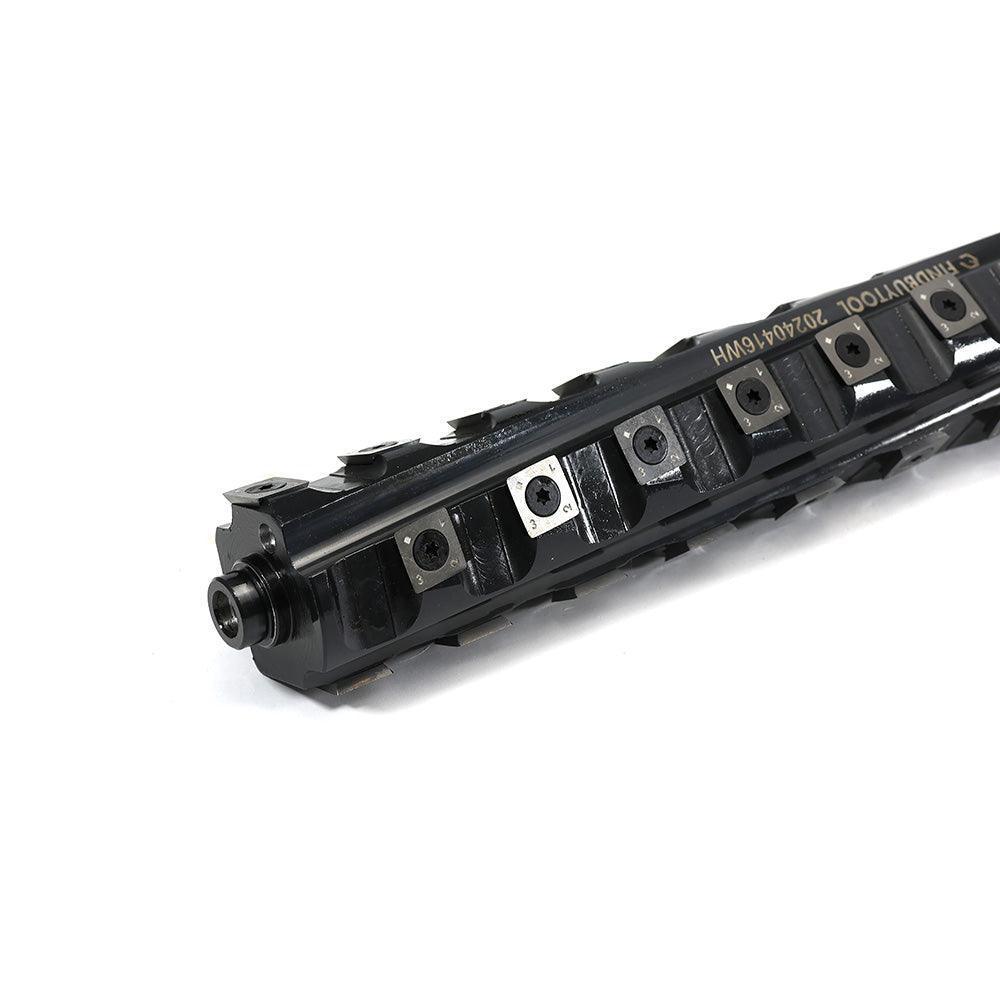

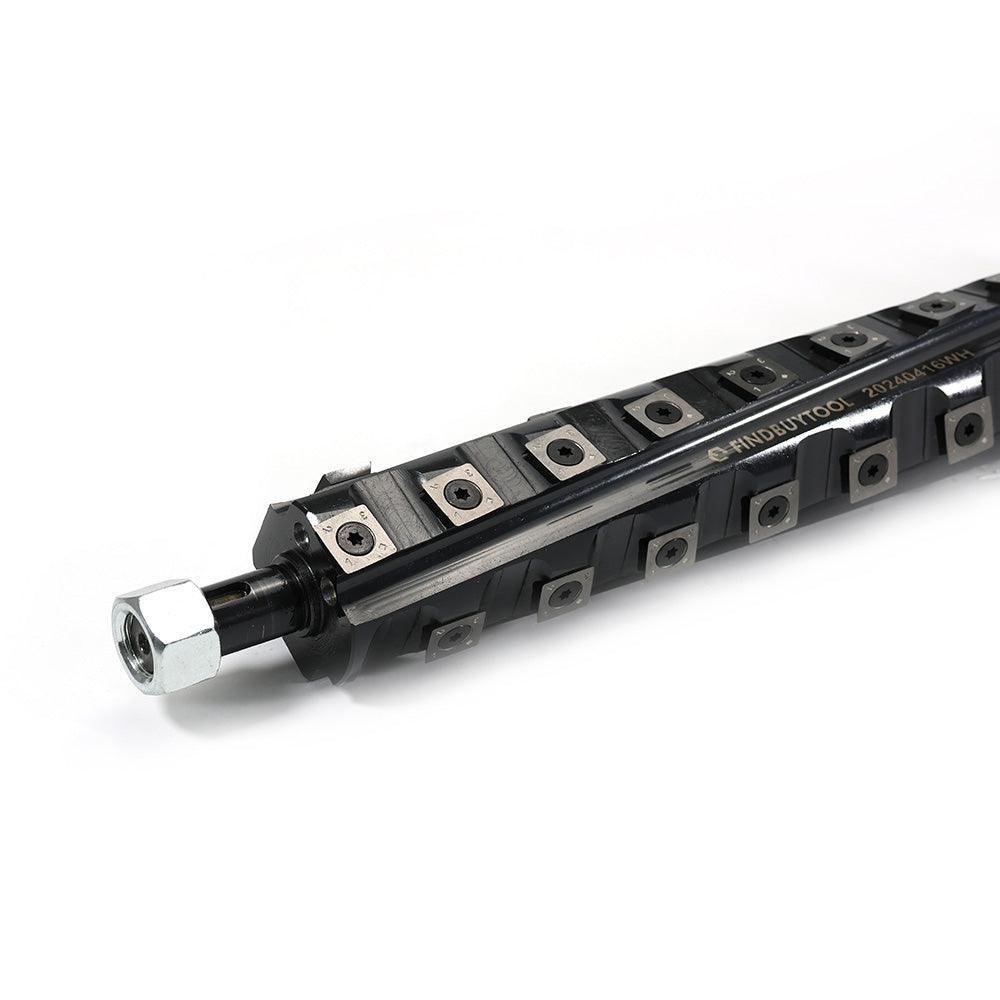

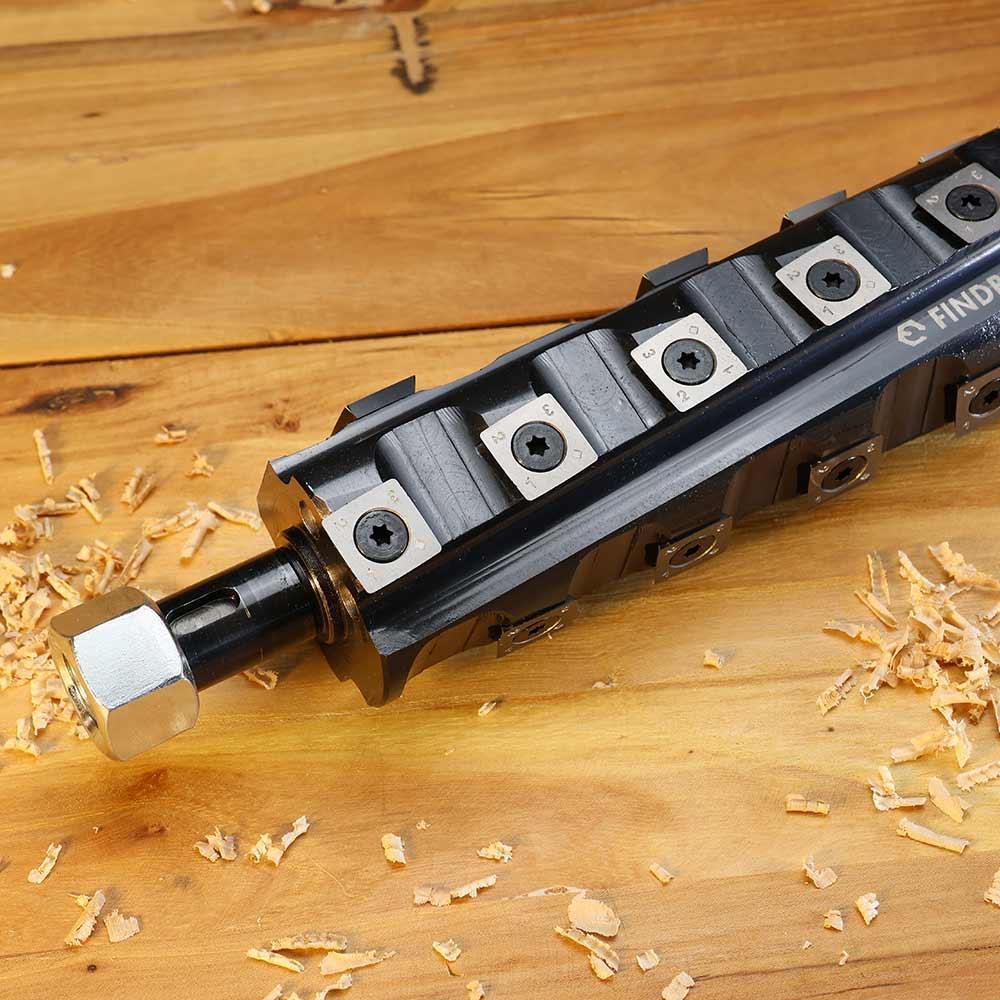

Helical Cutter Head for CUTECH 40700H 12-1/2" Thickness Planer

This helical cutterhead will take the performance of your CUTECH 40700H 12-1/2" planer (thicknesser) to the next level. It delivers a noticeably smoother finish, eliminates tear-outs, and reduces the noise level by at least 50%. The indexable carbide insert knives are made from top-quality tungsten carbide, lasting 40 times longer than HSS knives.

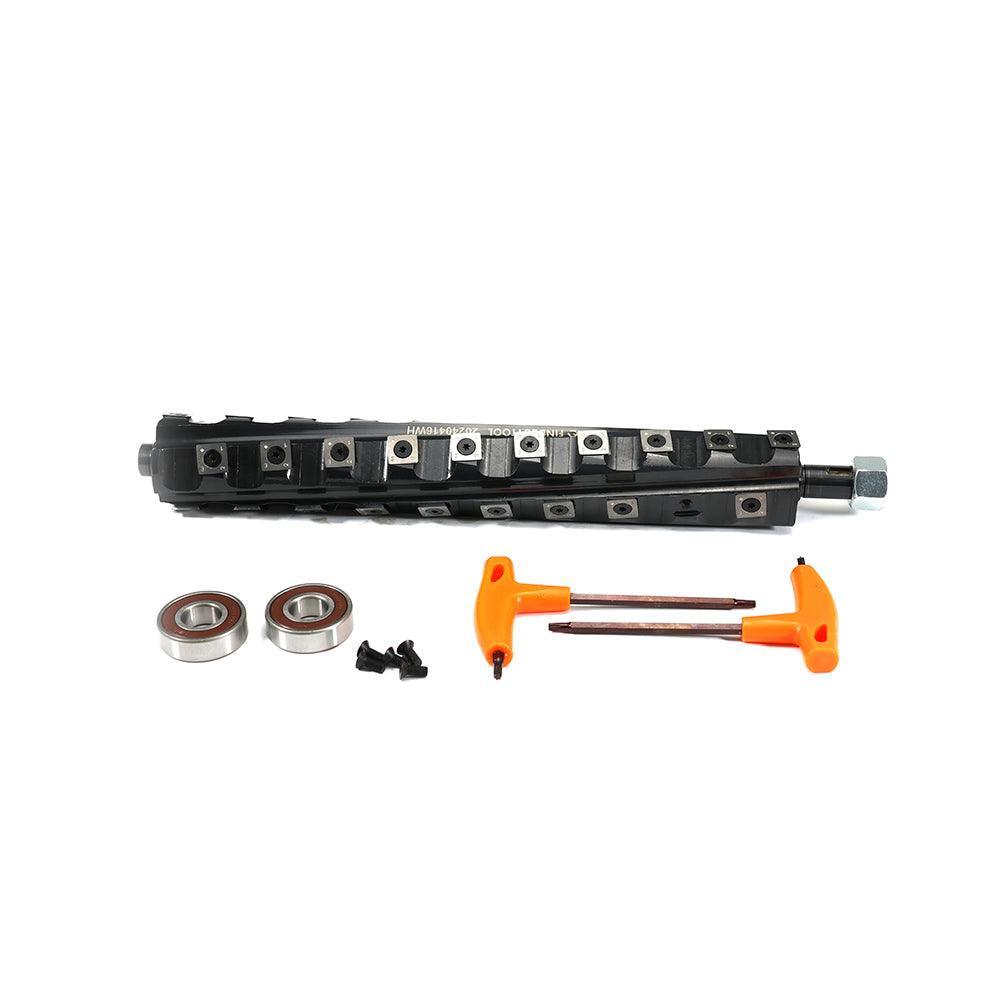

Any option Includes

• 1 x 13" helical cutter head
• 40 x 15x15x2.5mm Carbide Insert
• 40 x Screws
• 2 x Wrenches
• A Pair of bearings

Features

• The better wood surface finishes on all kinds of hardwoods, softwoods, and artificial wood.
• The helical style design produces a shear cut, which eliminates snipe and tear-outs.
• 40x lifetime thanks to the top-quality tungsten carbide inserts.
• Upgraded insert knives: radius-corner design eliminates the lines and scalloped surface, and reduces the possibility of breaking the blades.
• Producing much smaller chips and your dust collection system will function more efficiently.

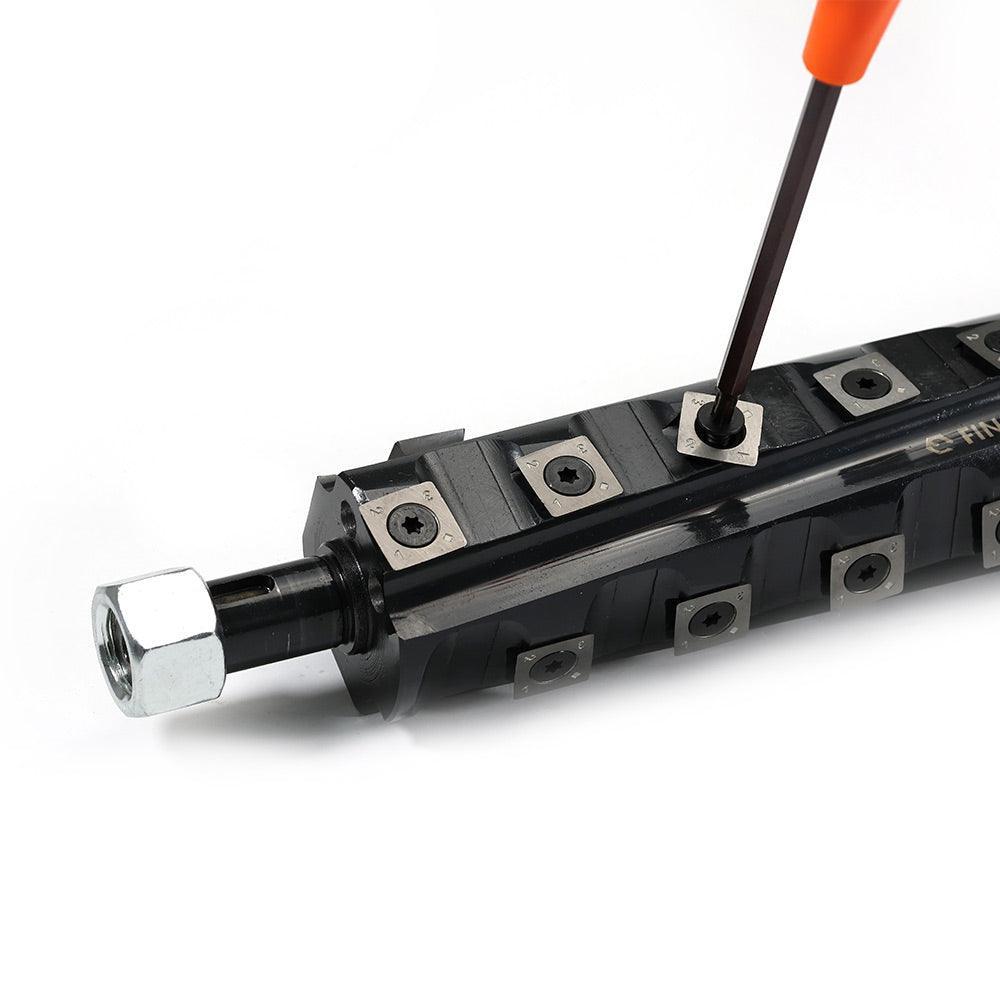

• Changing blades is effortless and does not require adjustment.
• No need to re-sharpen the blades any longer.
• At least 50% noise reduction.
• The recommended spec for torquing the knives is 6 Newton meters. Please refer to the manual for guidance on installing the carbide insert knives when replacing them.
• In case you're unable to locate a cutter head that matches your machine model, we also provide an option for a custom cutter head.

Technical information

Max Wide of Cut	12-1/2 Inch
Cutting Wings	4
Quantity of Knives	40
Insert Knives	15x15x2.5mm

Application

• Wood, Plywood, MDF

SHIPPING DIAMETER

• Net Weight
• 4600g
• Package Size
• 450 x 150 x 150mm
