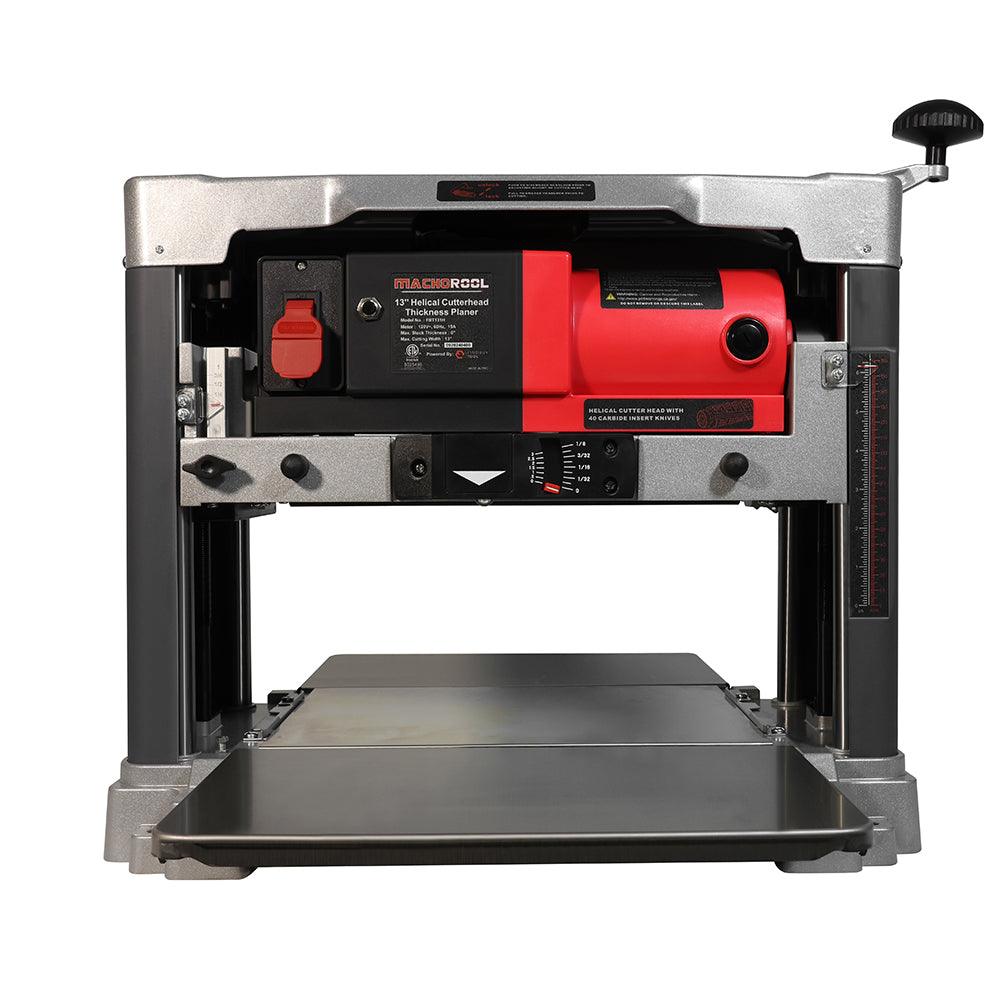

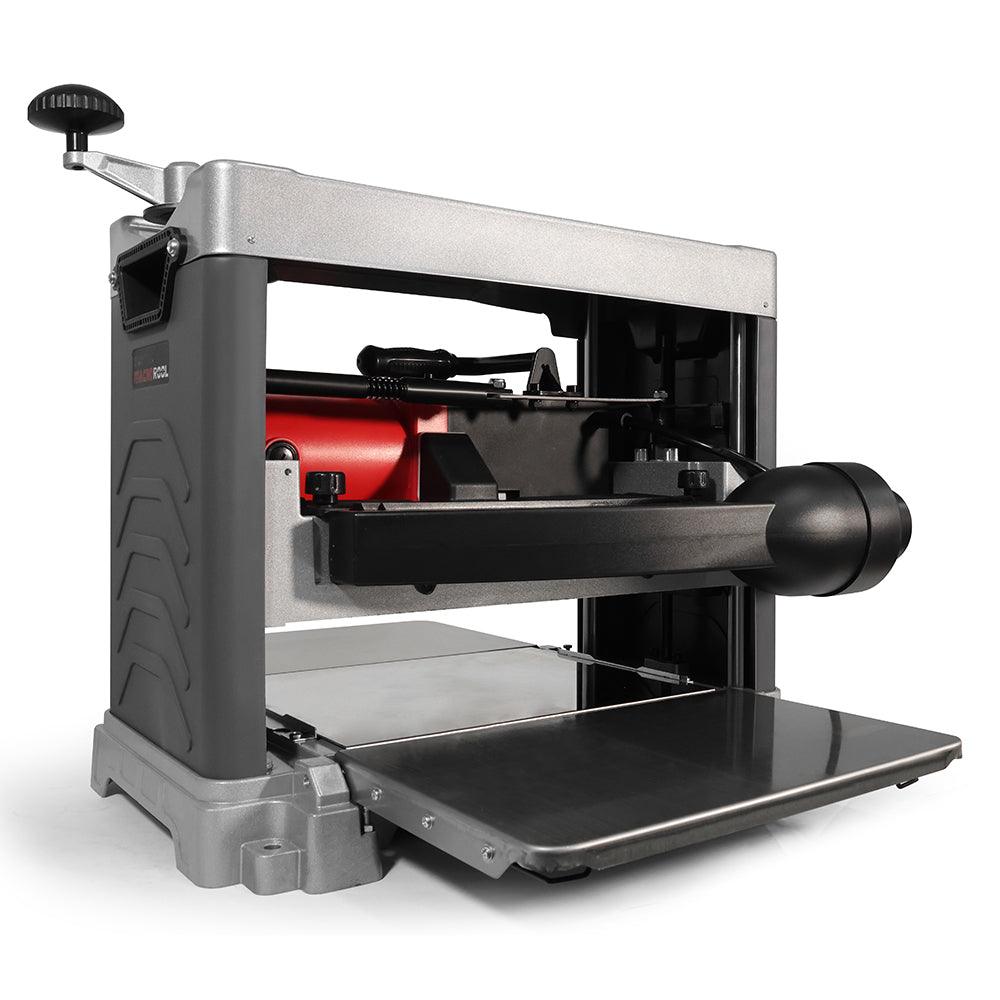

FindBuyTool FB131H 13" Benchtop Wood Thickness Planer with Helical Cutter Head
FindBuyTool FB131H 13" Benchtop Wood Thickness Planer with Helical Cutter Head is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
FindBuyTool FB131H 13" Benchtop Wood Thickness Planer with Hel...
- Description
- Spec
- Reviews

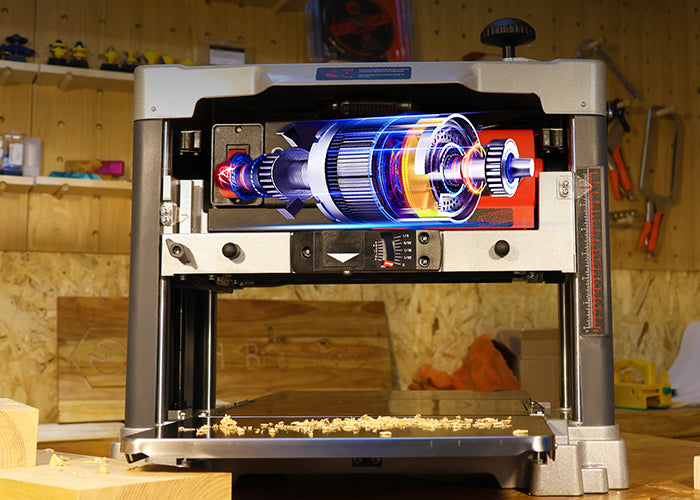

1800W Powerful Motor
15 AMP 1800W motor; Blade Speed: 10,000 RPM; Feed Rate: 330 inches/minute (27.5 FPM). This powerful motor boasts low interference, low noise, smooth operation, high speed, high temperature resistance, and a long lifespan (over 200,000 hours), ensuring stability and reliability in woodworking. It can handle larger, deeper hardwood cuts, providing the performance you need to complete a wide range of tasks.

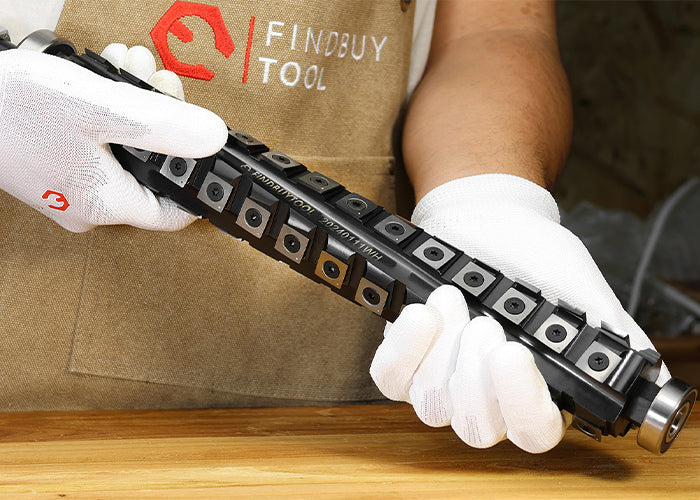

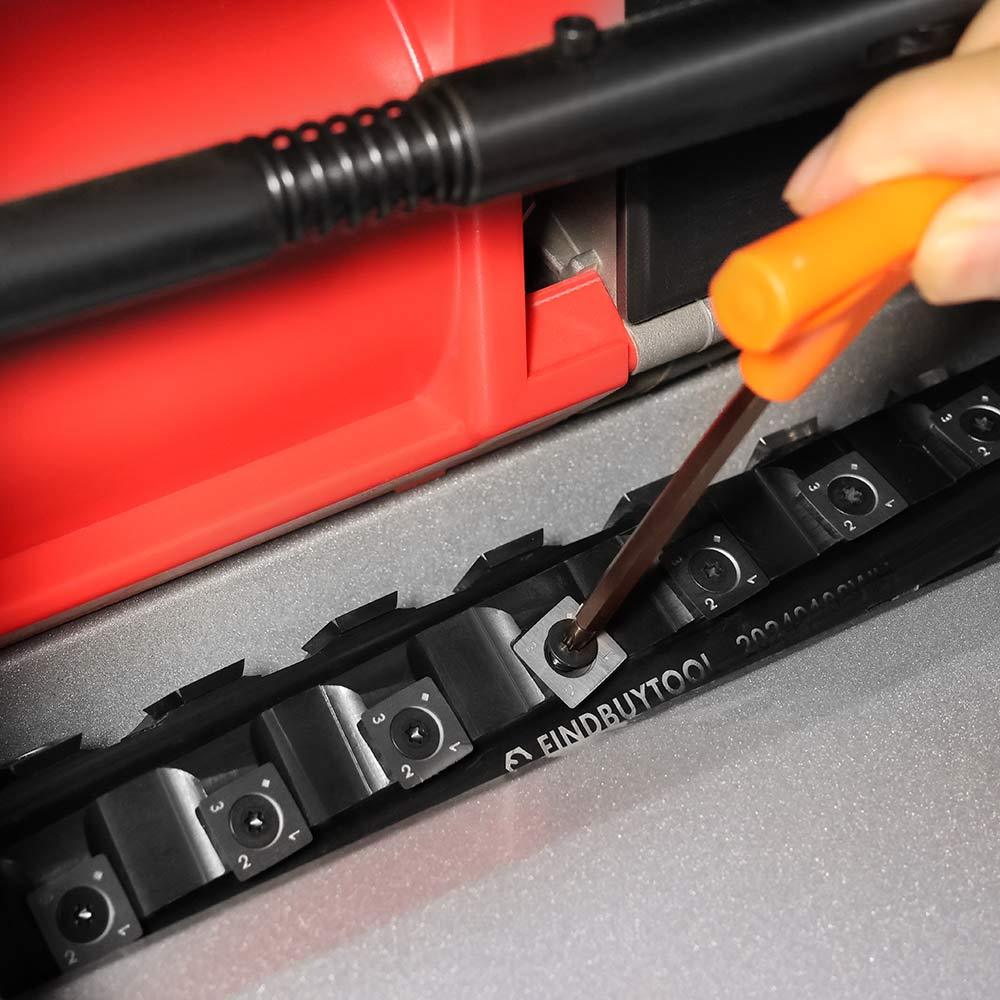

Helical Cutterhead with 40 Inserts
FB131H thickness planer with a helical cutter head provides a smoother finish compared to other planers. Its 4-row, 40 tungsten carbide inserts work in tandem to reduce chatter marks and snipe, producing a smooth, tear-free shear cut with minimal noise. This portable thickness planer delivers a flawless finish on all types of hardwoods, weathered wood, or engineered wood.
Precision Planing

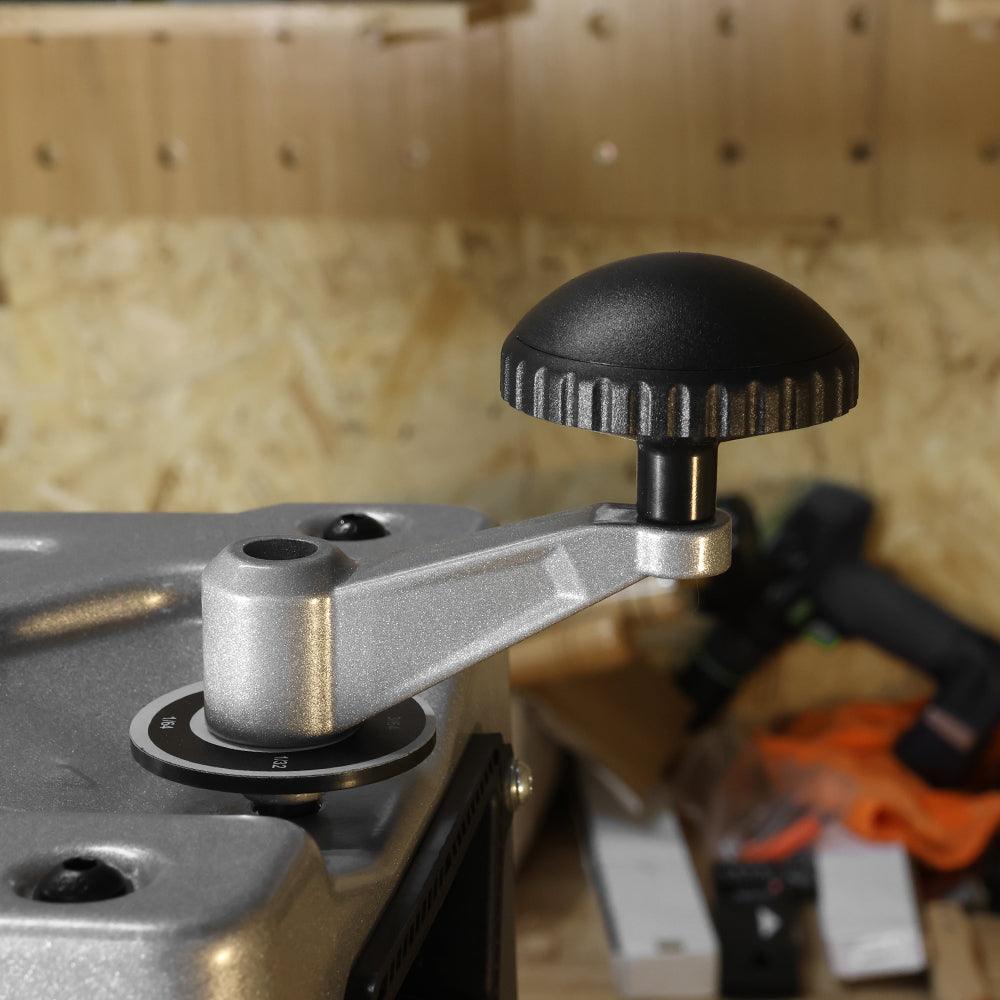

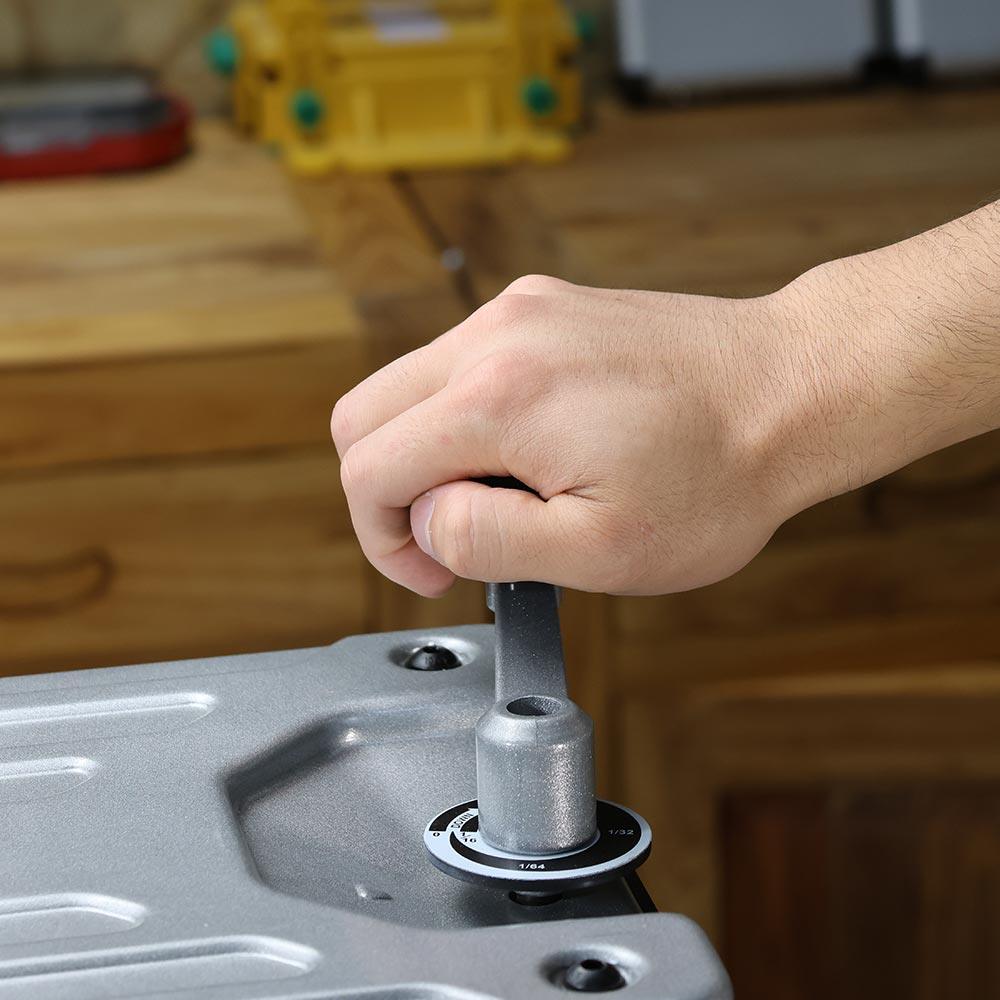

Our Findbuytool FB131H surface thickness planer excels in precision, offering fine adjustments for wood thickness. It comes with a convenient raise/lower handle that allows for fine adjustments of the cut depth. By rotating this handle, you can control accurately displays the height of the cutter blades to a maximum of 6 in.
Features of FB131H
-
![]()

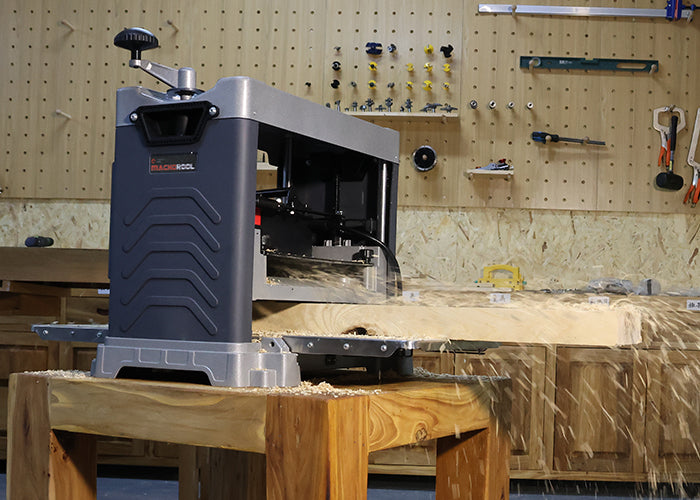

Portability and Space-Saving

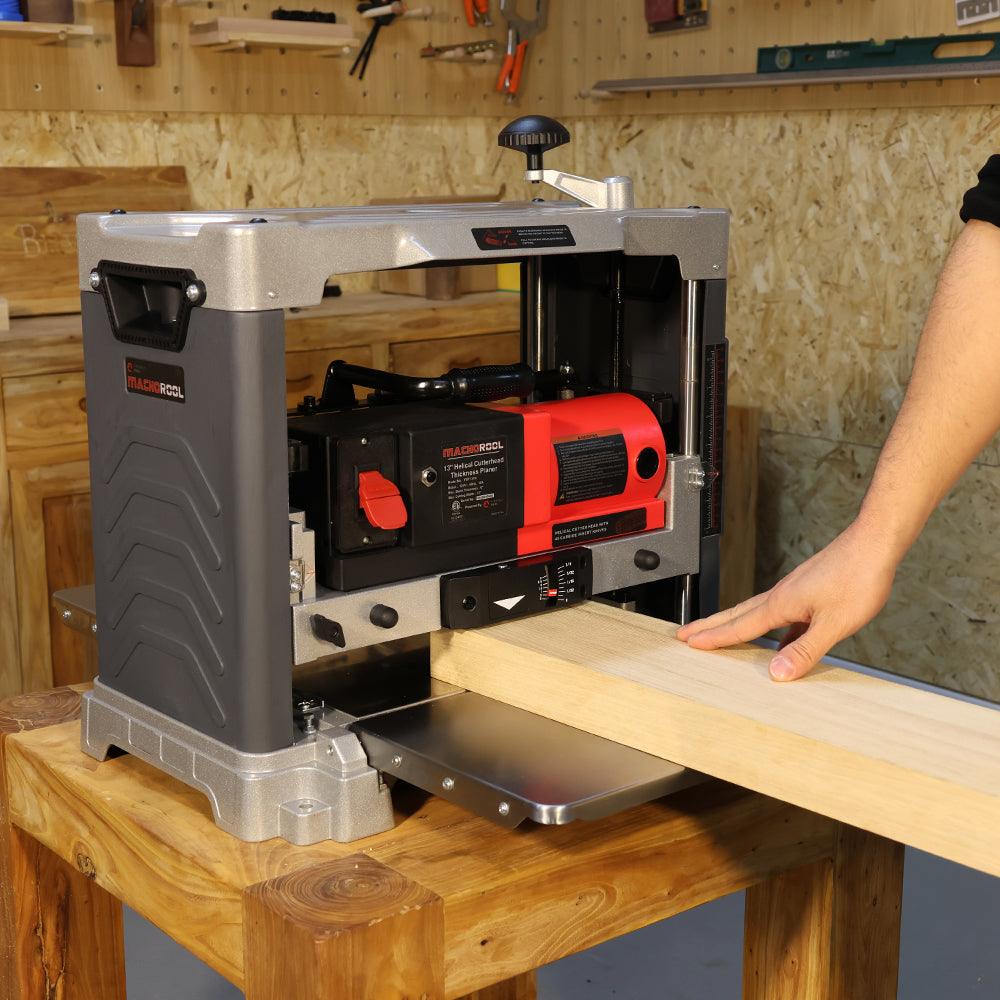

This thickness planer is compact and portable. When the infeed and outfeed tables are extended, it can accommodate wood pieces up to 13 inches in width, providing ample support for larger planing tasks. Once the tables are retracted, the thickness planer’s dimensions are just 19.5 in × 14.2 in × 17.5 in, allowing for convenient storage in any corner of your workspace.
-
![]()

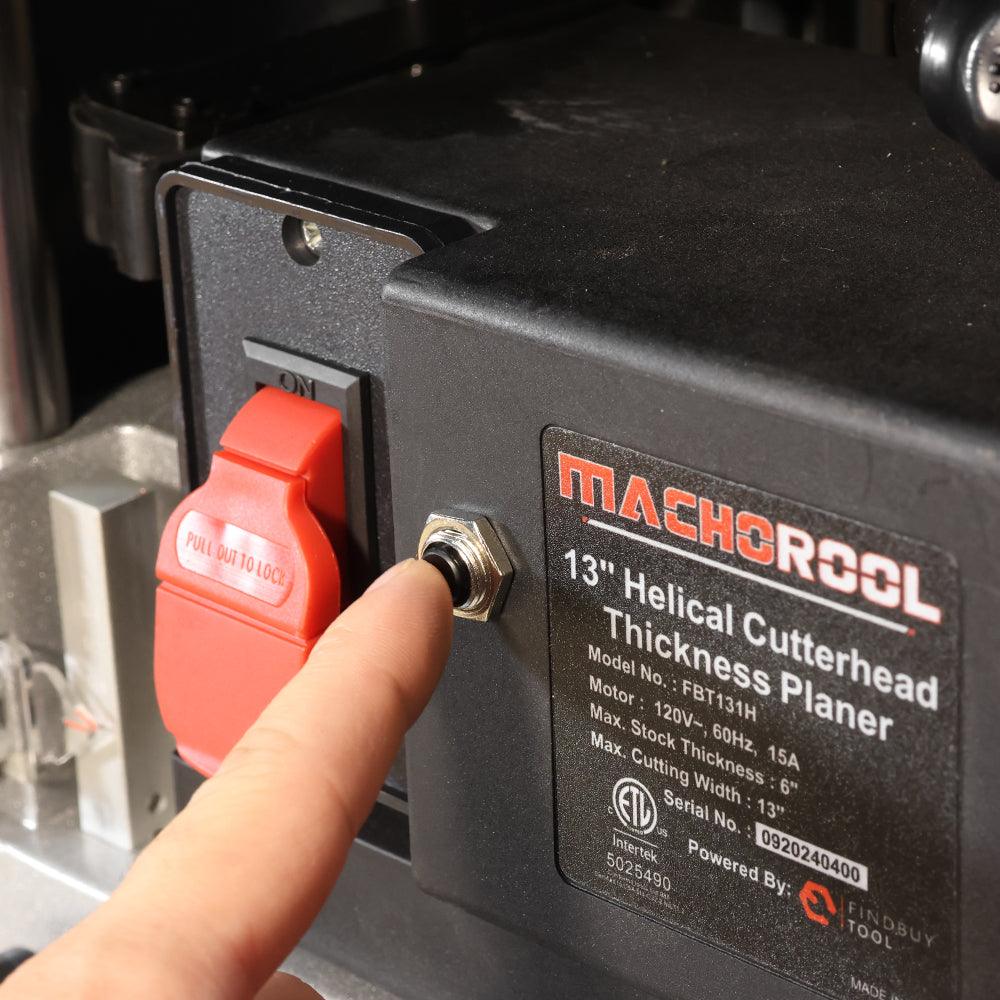

Motor Overload Protector
For additional safety, when the total current exceeds 20A, the 20A overcurrent protector will automatically cut off the power supply to protect your safety.
-
![]()

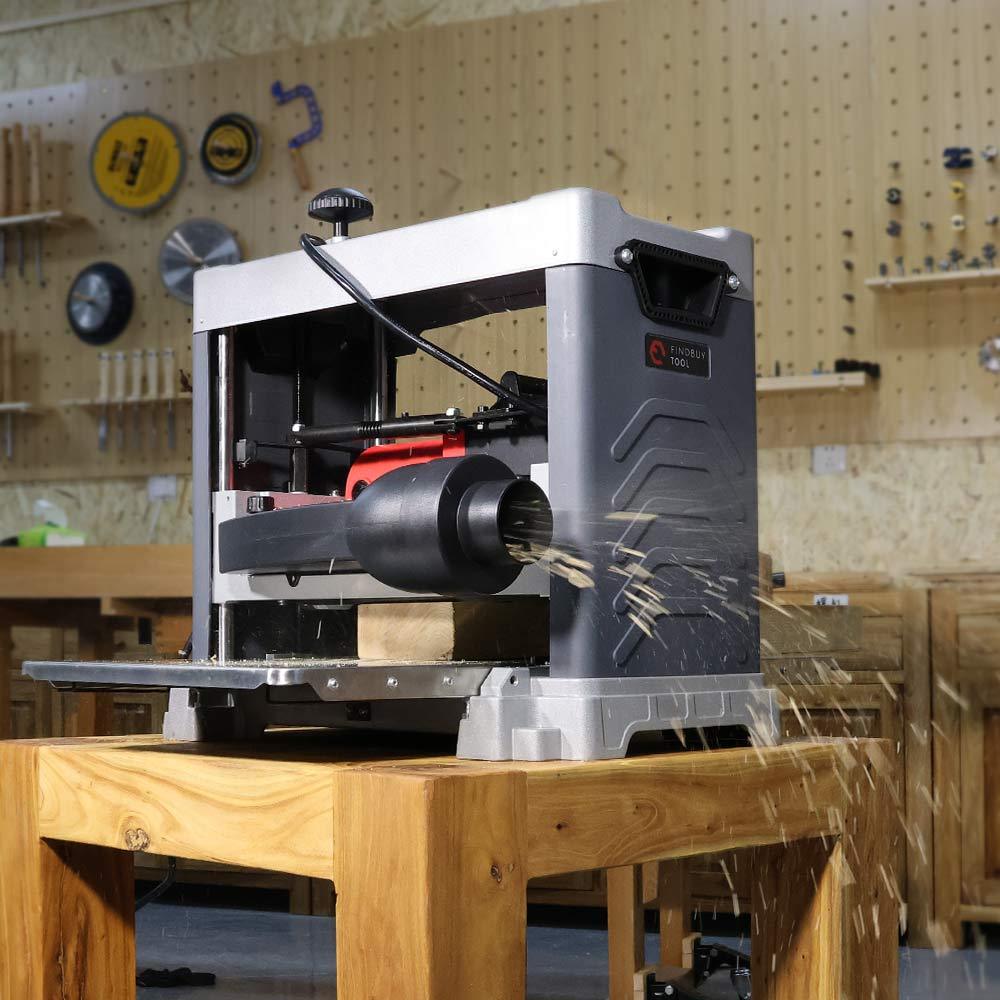

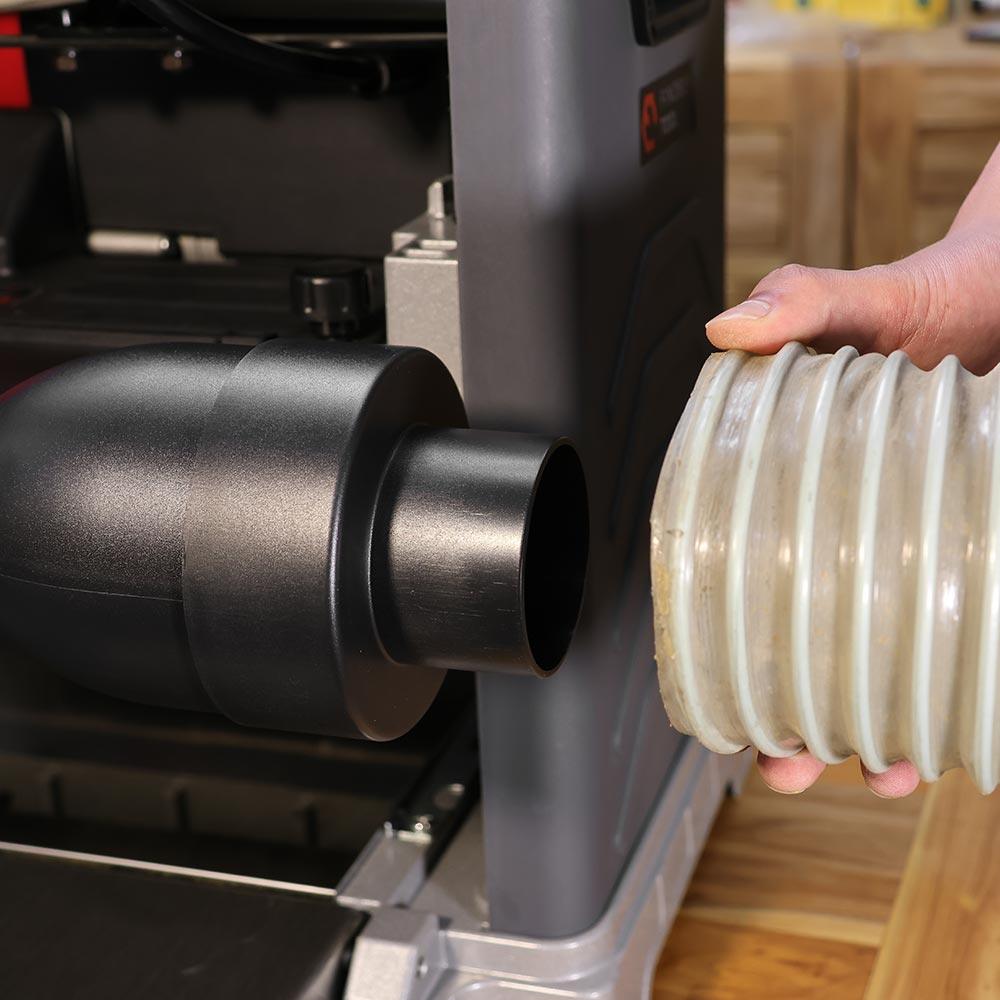

Low Dust Planing
This wood thickness planer is equipped with a vacuum suction port(diameter 2.36 inches), making dust collection straightforward. This chip removal device connects to a vacuum cleaner, efficiently pulling debris away from the cutter head and expelling it out of the machine. This feature helps keep your workroom cleaner.
-
![]()
Locking Lever
By dampening the effects of vibration and other disturbances, this locking bar ensures that the workpiece remains fixed and aligned throughout the milling process. Not only does it increase operator safety, it also improves the smoothness of the wood, making it an important component for high-precision planing.
-
![]()

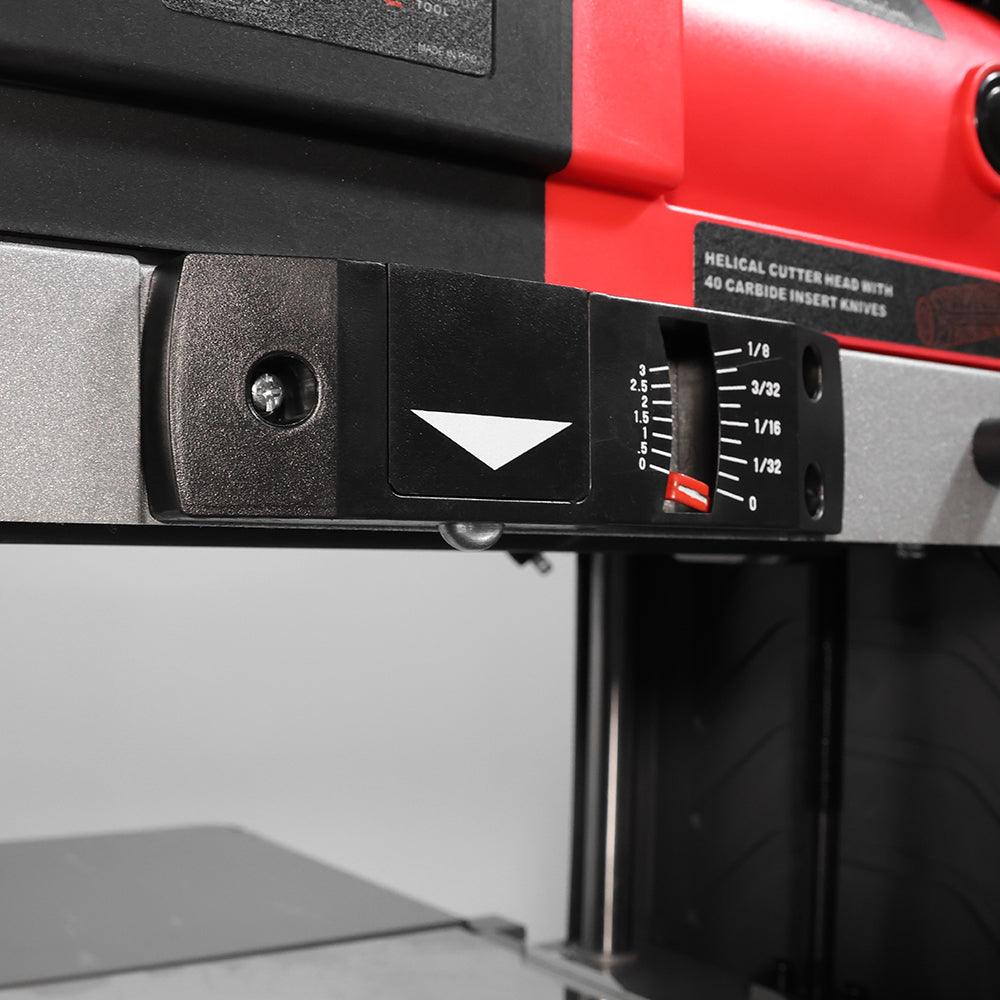

Depth of Indicator
This high-precision part designed to view the cutting depth in real-time. It allows you to make precise adjustments to the cutting depth, helping to maintain a consistent and uniform cutting depth throughout the process, ultimately improving surface quality and reducing errors
-
![]()
Low Noise Level
This benchtop thickness planer operates as quietly as 83 decibels, by minimizing noise during use. This quieter operation helps reduce fatigue and creates a more pleasant working environment, allowing you to focus on your woodworking tasks without being distracted by excessive noise.
-
![]()
Stability and Build Quality
This portable thickness planer is built with a sturdy base and 4-column frame.Holes on the base of the FB131H allow it to be securely fixed to a workbench, ensuring the machine remains stable during operation. This design minimizes vibration and ensures stability during operation, which can achieve best consistent planing results.
-
![]()

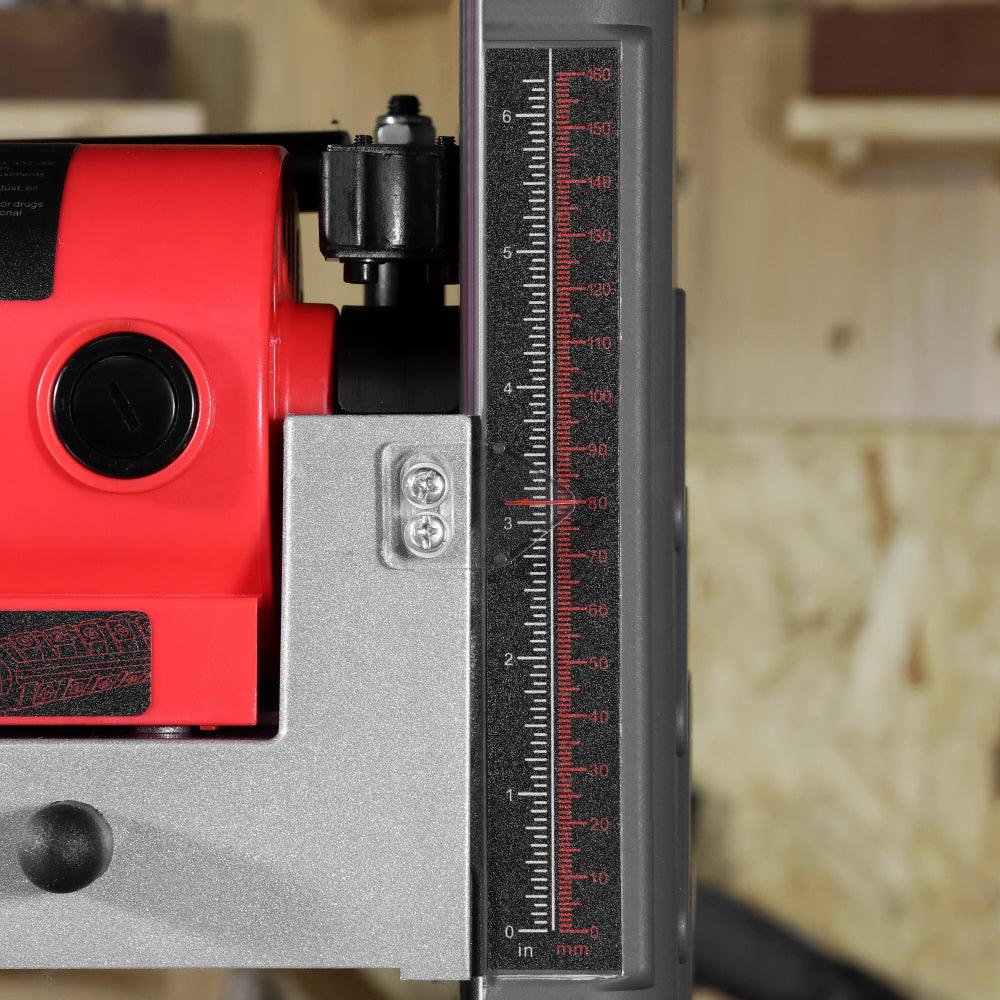

Visible Thickness Scale
Thickness scale of this dimensional thickness planer clearly displays the planing thickness up to 0.1 mm. This allows you to easily monitor and adjust the cutting depth without having to check the internal measurement.
-
![]()
Quick Limit Block
The quick limit block revolutionizes the milling workflow by allowing you to quickly set up and reach a specified height. Once the desired height is configured, the machine can mill at that height continuously without constant adjustments. This feature is particularly useful for tasks that require repetitive milling at a fixed height, increasing efficiency and productivity for high-volume operations.
Technical Details
Max Planing Width: 13 inch
Max Planing Height: 6-1/4 inch
Max Planing Depth: 1/16 inch
Power: 120V 60Hz 15Amp
No Load Speed: 10000RPM
Feed Rate: 27.5 FPM
FB131H FAQs
What's the size of the FB131H?
What's the size of the FB131H?
Overall Size(L × W × H): 27.4inch × 20.7inch × 18.9 inch
Folded Size(L x W x H): 19.5inch × 14.2inch × 17.6 inch
Dust Port Diameter:2.36 inches
Weight: 76 lb
Can I replace the knives?
Can I replace the knives?
Yes, you can buy the knives from here: 15x15x2.5mm R150 carbide insert
How long will it take to receive my order?
How long will it take to receive my order?
Orders usually take 3-5 business days to arrive from our local warehouse in the USA. For information on shipping to other countries, please contact us.
How much does it weigh?
How much does it weigh?
The item weighs 77 lbs
Where is the user manual?
Where is the user manual?
Yes, Click here to see user manual of FB131H
Can the preset thickness be set at 3/8 inch?
Can the preset thickness be set at 3/8 inch?
Yes, the minimum planing thickness of the planers is 1/16"
What's your warranty policy?
What's your warranty policy?
Findbuytool offers a one-year warranty on all thickness planer, for more specific warranties, please check our warranty policy.
What's your return policy?
What's your return policy?
All customers have a 30 DAY MONEY BACK GUARANTEE
For more specific return and refund, pls check our return policy.
Customer Reviews
I had a grizzly g1021z planer with idexible head I had to downsize shop and sold it. Well when I moved god my shop back up I did heavy research and I chose this 13 planer. The best decision I made, this machine
Cuts as good as my 15 inch grizzly did. I put a wixey digital reader on it for accuracy. Very little snip and you do not need a head lock it cuts great every time better then other big machines
I have only had this planer for a couple weeks now, but so far have been very impressed. The finish really is as everyone says a "mirror finish" and will require much less sanding. Mill marks are almost non existant. I have had a bit of a problem with the board getting stuck, but I havent tried waxing it yet, which I have read will fix that problem. All together this planer has proven all my doubts wrong. I would recommend this to everyone.
I've only run a few boards through it so far but it works perfectly. You can't get a spiral head planer for this price. Everything was square out of the box - no adjustments needed. Definitely worth the price.
Thank you for your positive review! We're glad to hear that you are satisfied with the quality of our FB131H benchtop wood thickness planer. Thank you for choosing FindBuyTool.
They shipped the planer quickly. It was damaged in rout, like so many items these days. The packaging was very sturdy but the box was dropped enough to damage some big strong bolts. They were quick to validate my claim and send out a new machine. The new planer was perfect and works great. It was easy to setup. I had not heard of this company before but they seem to be in the business of making their customers happy.
Thank you for your review! We are glad to hear that our customer support was able to assist you quickly and efficiently. Have a great day!
For many years I used a Dewalt 13” surface planer, which I lugged from the cellar to the outdoors, because of the noise (the Dewalt is a screamer) and the dust. Tired of lugging that beast up & down steep stairs, I gave it away to a friend. Findbuytool FB131H is probably 30 pounds lighter and much quieter (yes, I know it’s a single speed). even though it’s considerably lighter, it doesn’t dance around the stand that I rest it on when it’s being used. There’s some sniping, but that’s to be expected. I’ve planed yellow pine & white ash; both woods were satisfactorily planed.
After extensive looking at reviews of different planers, I choose this planer
No set up required. ready to use out of the box. Only setup I did was to fasten it to my stand and add the
dust collector.
The extension tabe support is very good with an extension on the hinge that rests against the frame
As other reviewers have stated, I did not see any snipe on the boards I planed.
Works well and is quieter than most
Rapid delivery of product. Easy to set up. I found a red oak plank left over from a project I did right after I got married in1979. The planer never slowed when I ran that hard hard oak through it.
