25 & 30 Degree Horse Nose Router Bit

SKU: 02100404
$21.99 USD
Tax included Shipping calculated at checkout.
Size

Payment & Security

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Trusted Delivery

🎫Must Buy Deals Learn More | Save $30 Now! |
  • Description
  • Reviews
    • $21.99 USD

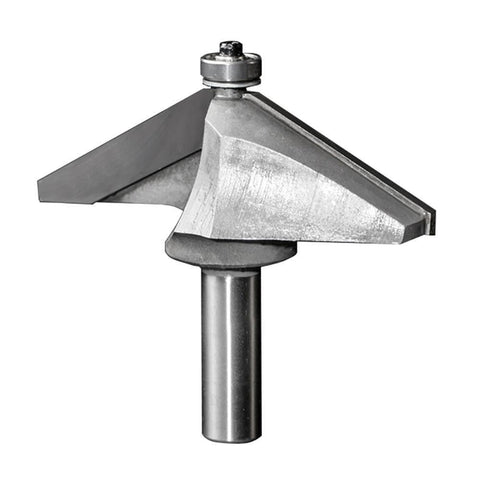

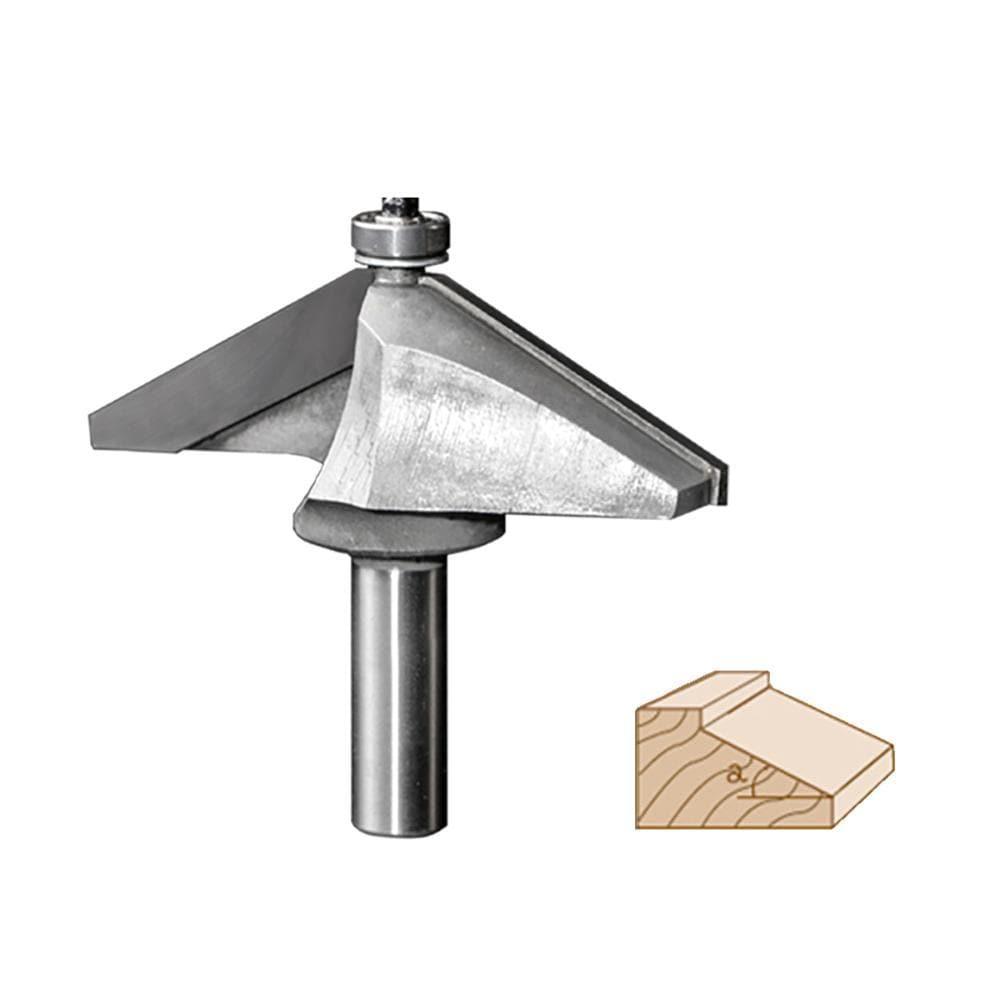

The low-angle bevel edge bit without bearing is designed for chamfering or softening edges. It will cut a 25°/30°(or 65°/60°) angle on your workpiece, such as the table edge. It can also be used to create miter joints for a box. We also offer the edge bevel router bits of other angles, including 10°,12°,15°, and 24°.

Features
  • Findbuytool supplies a full line of industrial-grade router bits.
  • Industrial grade, with advanced welding technology, you can trust our quality.
  • For our European-standard precision, premium carbide tips are supplied by Ceratizit.

  • The guide bearing can guide the bit better along with the workpiece.
  • Lasting sharpness guarantees a continuous cut.

For better safety, we suggest using our chamfer horse nose router bits in a router table or a routing machine, instead of a handheld router.

Technical information

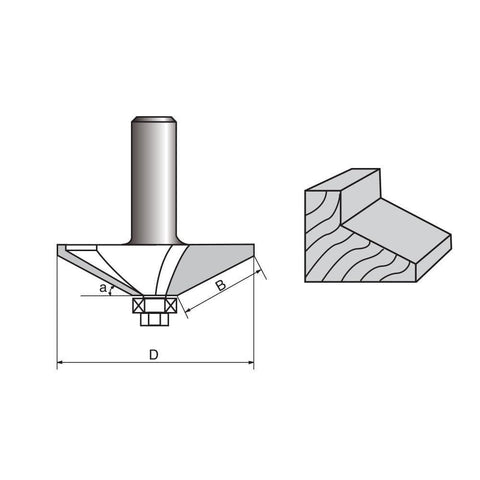

Shank Size x B(In.) D (mm) α B (mm) Material
1/4 x1/4 24.49 25° 6.35 Tungsten Carbide
1/4 x5/16 27.37 25° 7.92 Tungsten Carbide
1/4 x 3/8 30.2 25° 9.52 Tungsten Carbide
1/4 x 1/2 36 25° 12.7 Tungsten Carbide
1/2x1/4 24.49 25° 6.35 Tungsten Carbide
1/2 x 5/16 27.37 25° 7.92 Tungsten Carbide
1/2x 3/8 30.2 25° 9.52 Tungsten Carbide
1/2 x1/2 36 25° 12.7 Tungsten Carbide
1/2 x5/8 41.82 25° 15.9 Tungsten Carbide
1/2 x 3/4 47.8 25° 19.1 Tungsten Carbide
1/2 x 7/8 53 25° 22.2 Tungsten Carbide
1/2 x1 57.4 29° 25.4 Tungsten Carbide
1/2x1-1/8 62.5 30° 28.6 Tungsten Carbide
1/2 x1-1/4 68 30° 31.8 Tungsten Carbide
1/2x1-3/8 73.49 30° 34.9 Tungsten Carbide
1/2x1-1/2 78.98 30° 38.1 Tungsten Carbide
1/2x1-5/8 84.5 30° 41.3 Tungsten Carbide
1/2 x1-3/4 90 30° 44.45 Tungsten Carbide

Applications
  • Wood

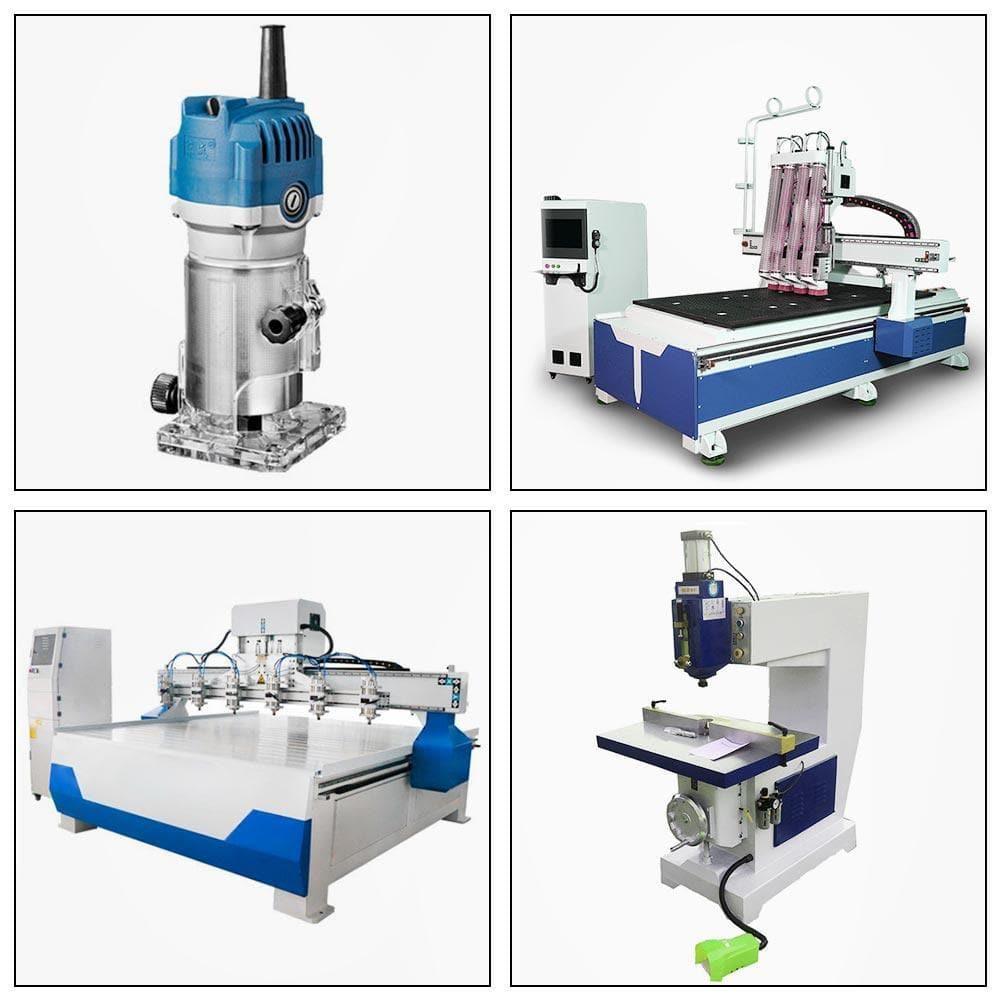

Machine
  • CNC Router
  • Fixed Base Router
  • Plunge Router
  • Bench Top Router Table

SHIPPING DIAMETER
  • UNIT
  • Pcs
  • Net Weight
  • 50
  • Package
  • In Plastic Box
  • Package Size
  • 95 x 18 x 18mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
