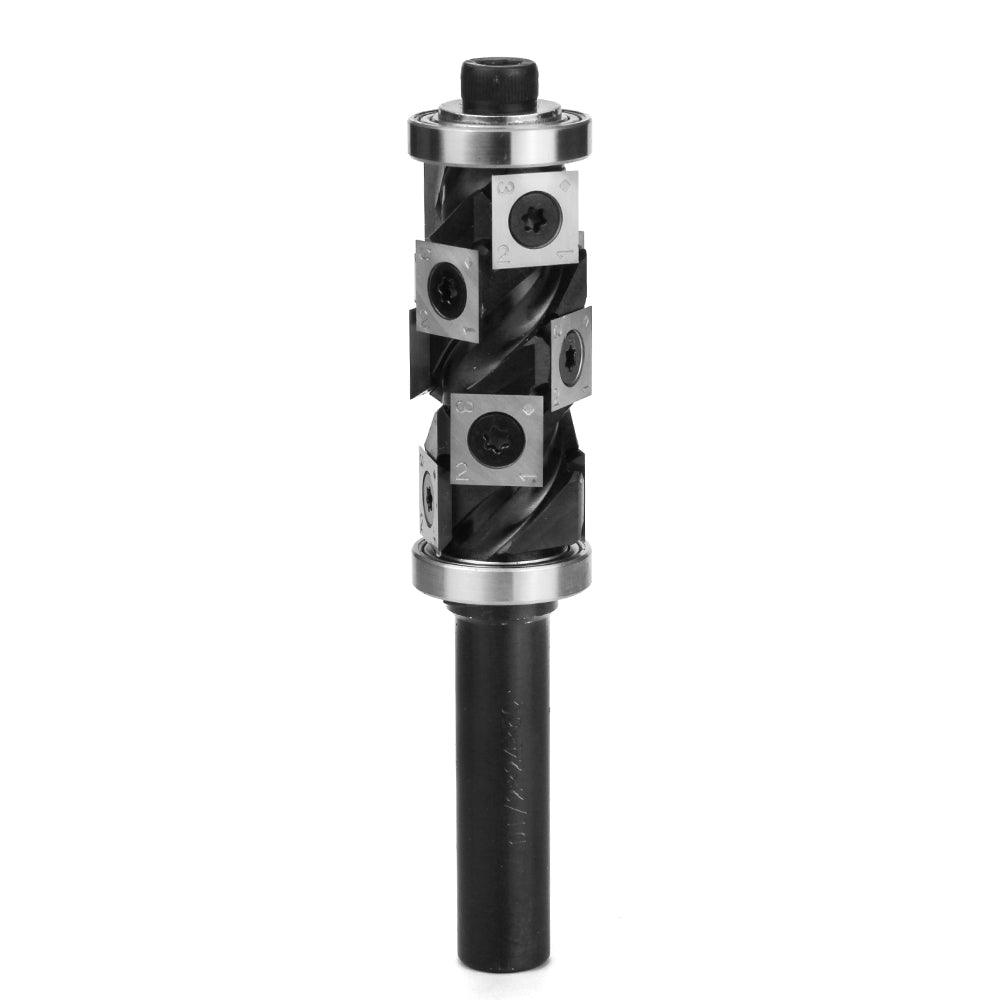

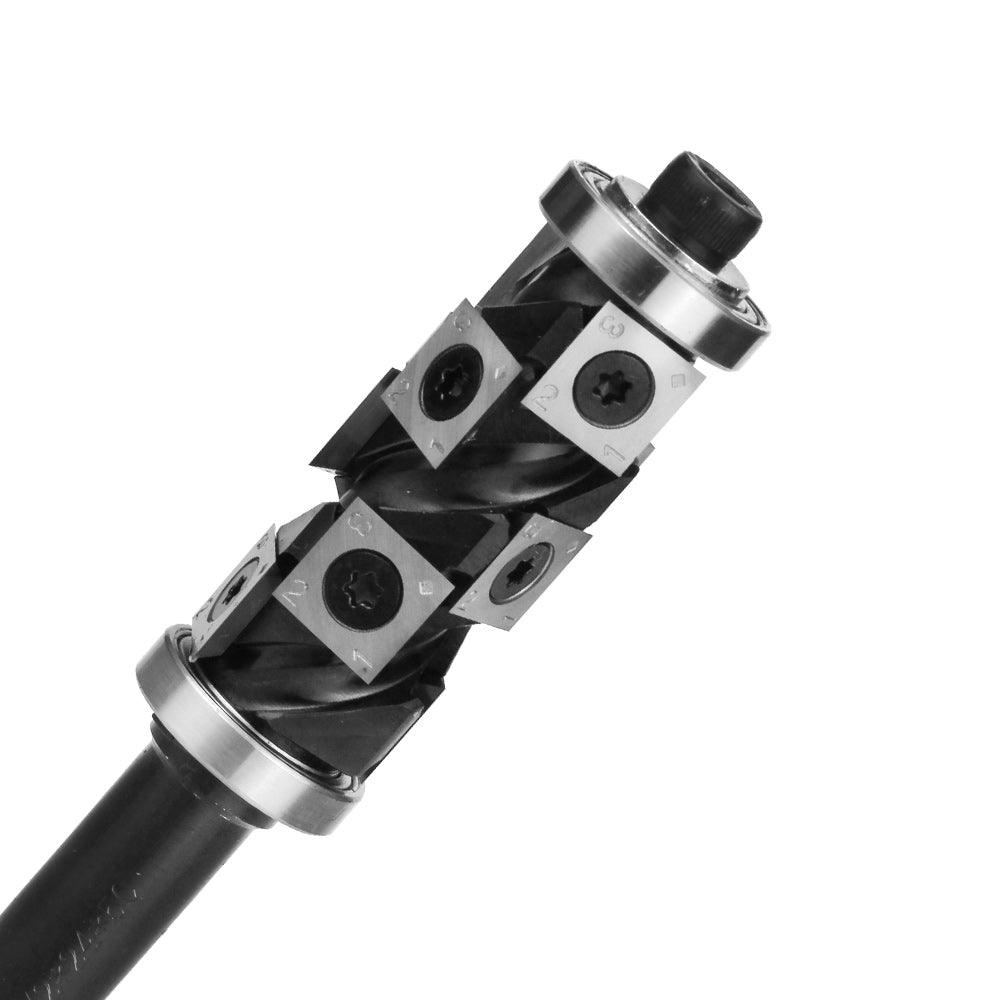

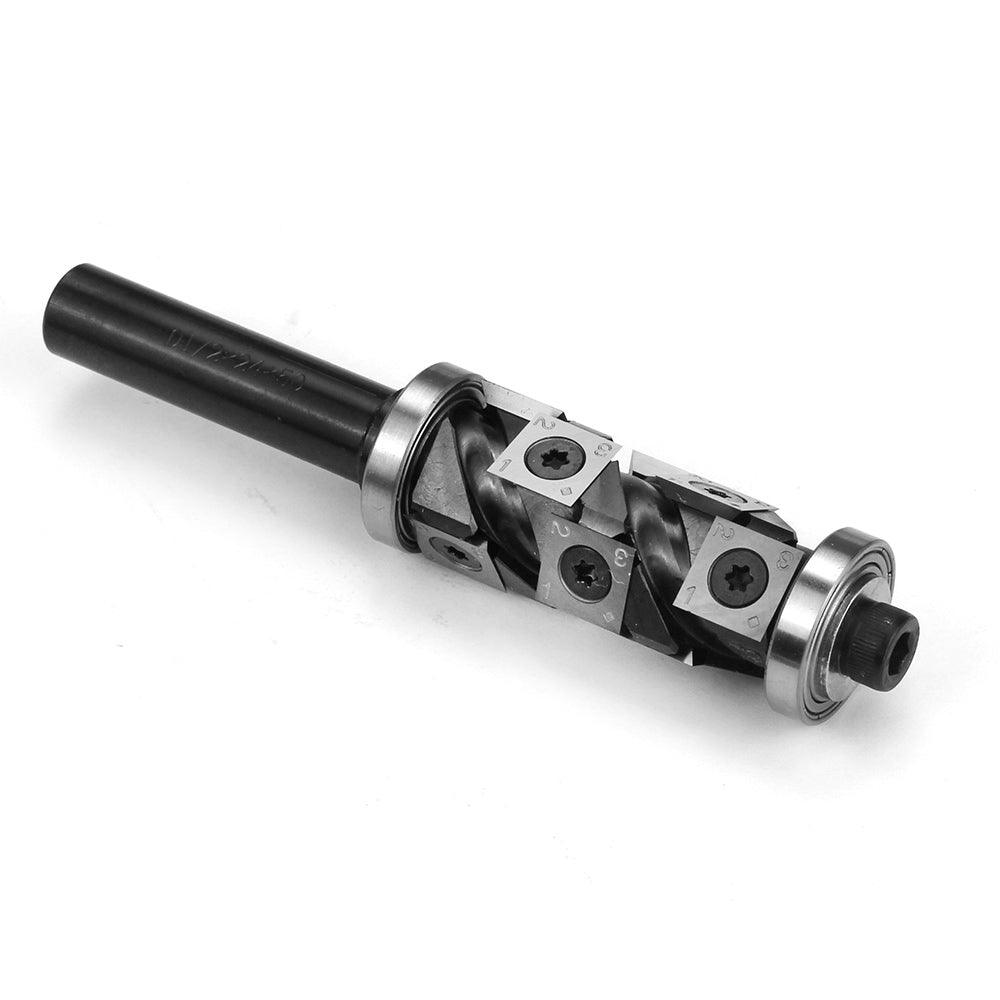

Spiral Router Bit with 10 Carbide Inserts
This spiral head design ensures smoother milling, while the stable cutter body guarantees high-quality edge finishing. This flush edging router bit comes with 10 replaceable carbide blades for excellent cutting performance. Only the blades need to be replaced when damaged, rather than the entire tool, making each use more economical.
Unique Bearing Design
This router bit features a top/bottom bearing setup. This design enhances stability, improves planing accuracy, and provides better balance when the machine is running at high speeds, making cutting more efficient without compromising performance.
-
Black Oxide Coating
We went a step further and added a smooth black coating to the steel body. This not only enhances the aesthetics of the router bit, but also improves durability and wear resistance.
-
Industrial Grade Quality
With an industrial-grade ultra-strong steel body and a solid tungsten carbide blade, this router bit has excellent hardness and durability. It can handle any type of wood with ease.
-
Wide Application Flush Cut Router Bits
Whether you use a router table or a handheld router with a 1/2-inch chuck, this router bit will perfectly meet your needs. It is suitable for trimming particleboard, chipboard, MDF, MDF, melamine board, veneer plywood (laminate), and solid wood.
Findbuytool offers a spiral flush router bit with carbide inserts, it can ensure optimal working efficiency for edge trimming, duplicate, and template work, with a high RPM for superior smooth results. We offer various types of spiral flush trim router bits with carbide inserts and various cutting heights to best satisfy your project requirements.
Features
Features
- Size: 12.7mm(shank) x 24mm(dia) x 50mm(cutting length). / 1/2 inches (shank) x 0.95 inches (dia) x 1.97 inches (cutting length).
- Industrial grade, ensure precision edge trimming.
- Made of superior carbide material, sturdy and durable.
- Upgraded, with black oxide coating, anti-rust and corrosion-resistant.
- Excellent trimming efficiency thanks to the 10 carbide inserts.
- Carbide insert specifications: 12x12x2.2mm.
- The balanced knife body ensures a stable cutting process.
- The recommended torque spec for the insert knife is 3Nm.
- The bearing is replaceable, you can buy the bearing from here.
- Maximum RPM: 10000.
- Cutting type: Upcut.
If the 12 inserts type flush trim router bit is too powerful or dangerous for you, this bit might be a good choice:
- With a compact size, less power is required.
- With higher RPM.
- Excellent trimming effect.
- Outstanding chip evacuation.
Note:
- We suggest using the bit better on a router table or CNC machines to achieve better cutting efficiency, and also for better safety.
- When cutting harder or denser wood, please decrease the cutting output and feed slowly.
- The cutting height of the workpiece is better under the cutting height of the router bit.
- If you cutting the plywood, please clean the blade after working to prolong the carbide insert service life.
- For your safety, please wear proper protective gear when working.
Technical information
Technical information

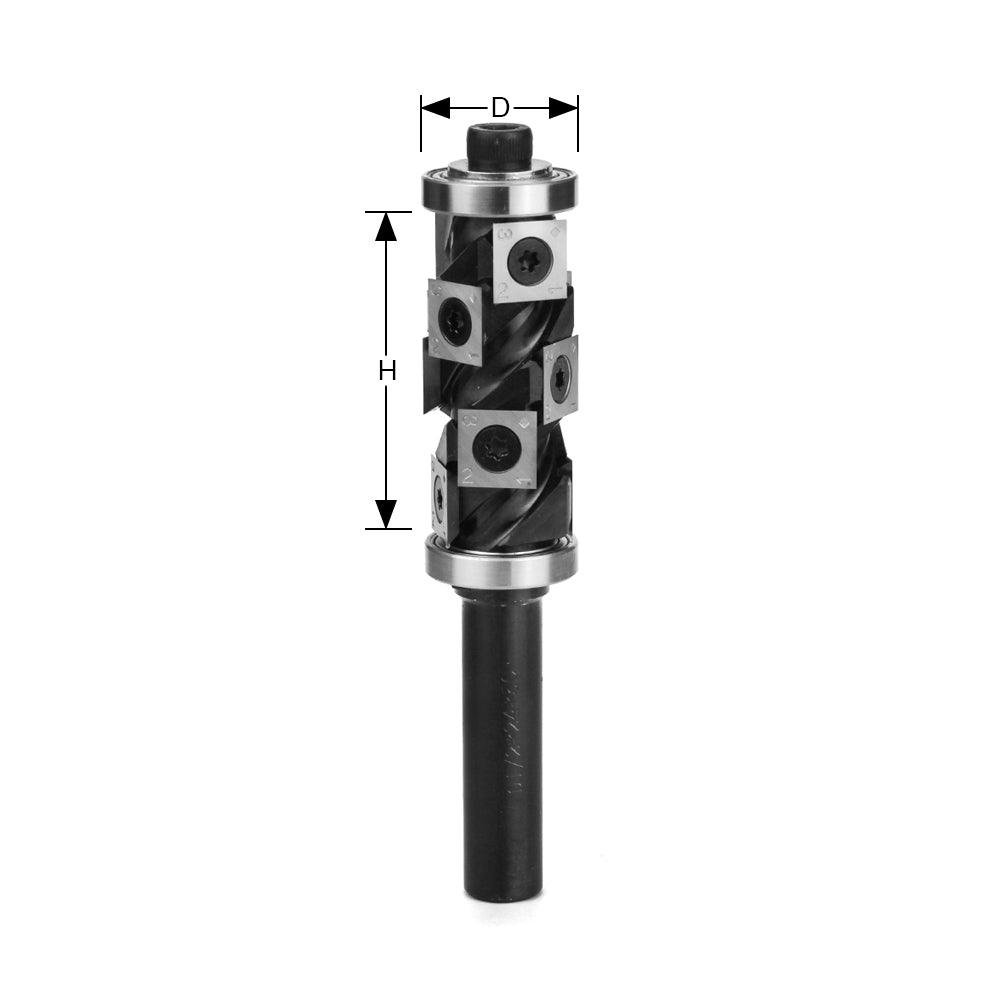

| Shank Size(mm) | D (mm) | H (mm) | Material | Image |
|---|---|---|---|---|
| 12.7 |
24 |
50 |
Tungsten Carbide |  |
Package Includes
Package Includes
- 1 x Spiral flush trim router bit
Machine
Machine
- CNC Router
- Fixed Base Router
- Plunge Router
- Bench Top Router Table
SHIPPING DIAMETER
SHIPPING DIAMETER
- Net Weight: 300g
- Package Size: 40 x 40x 130mm
FAQS
How long will it take to receive my order?
How long will it take to receive my order?
Orders usually take 5-12 business days to arrive from our local warehouse.
Is it suitable for beginners?
Is it suitable for beginners?
Yes, it’s user-friendly and can be a great tool for both beginners and experienced woodworkers.
How does the spiral design benefit the cutting process?
How does the spiral design benefit the cutting process?
The spiral design reduces cutting resistance, minimizes tear-out, and allows for efficient chip evacuation.
What are the advantages of double bearings?
What are the advantages of double bearings?
Double bearings provide extra support, reduce bit vibration, ensure smoother cutting, and increase the durability and precision of the bit.
