The helical cutter head is designed for upgrading Jet 6-inch woodworking jointers.
Including
- Jet JJ-6 6-inch Jointer (new 63mm cutting circle)
- Jet JJ-60S Jointer
- Jet JJ-6CS 6" Long Bed Straight Knife Jointer
- Jet JJ-6CSDX 6-Inch Jointer
- Jet JJ-6HHDX 6-Inch Jointer
- Jet JJ-6CSX 6-Inch Jointer

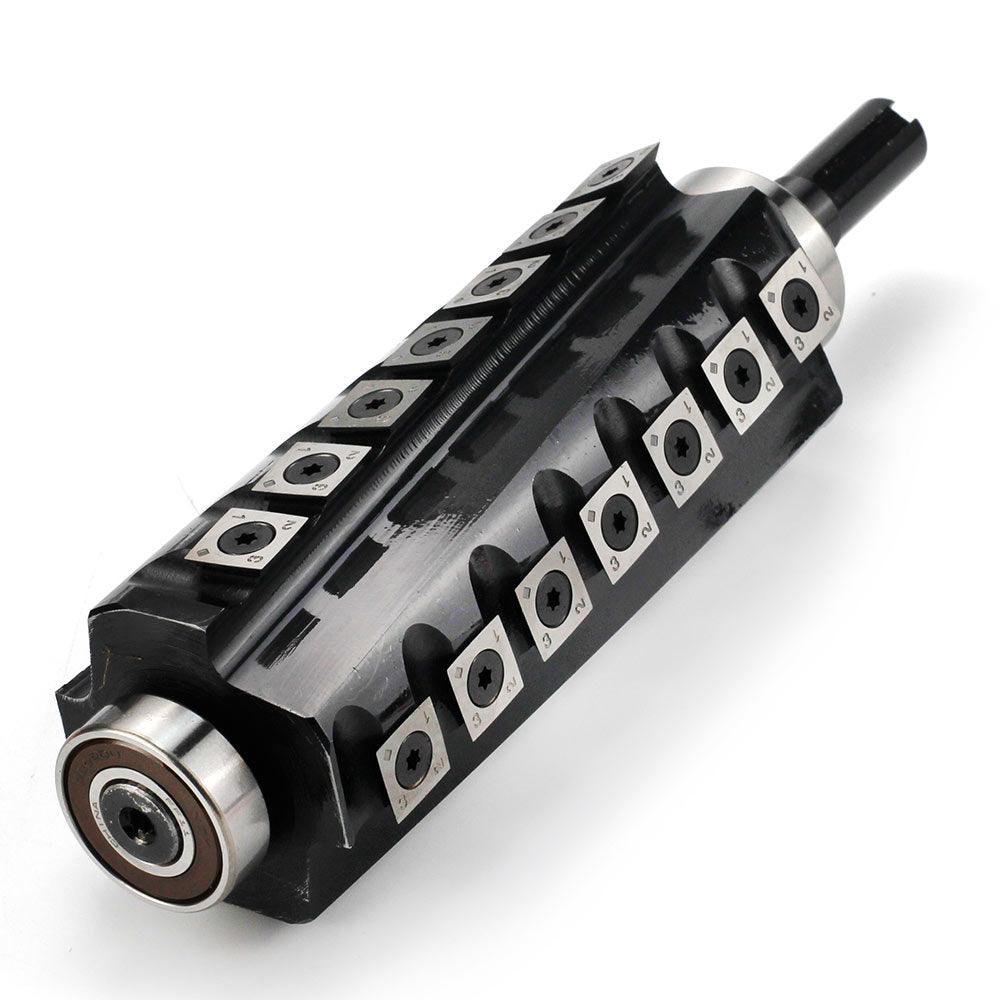

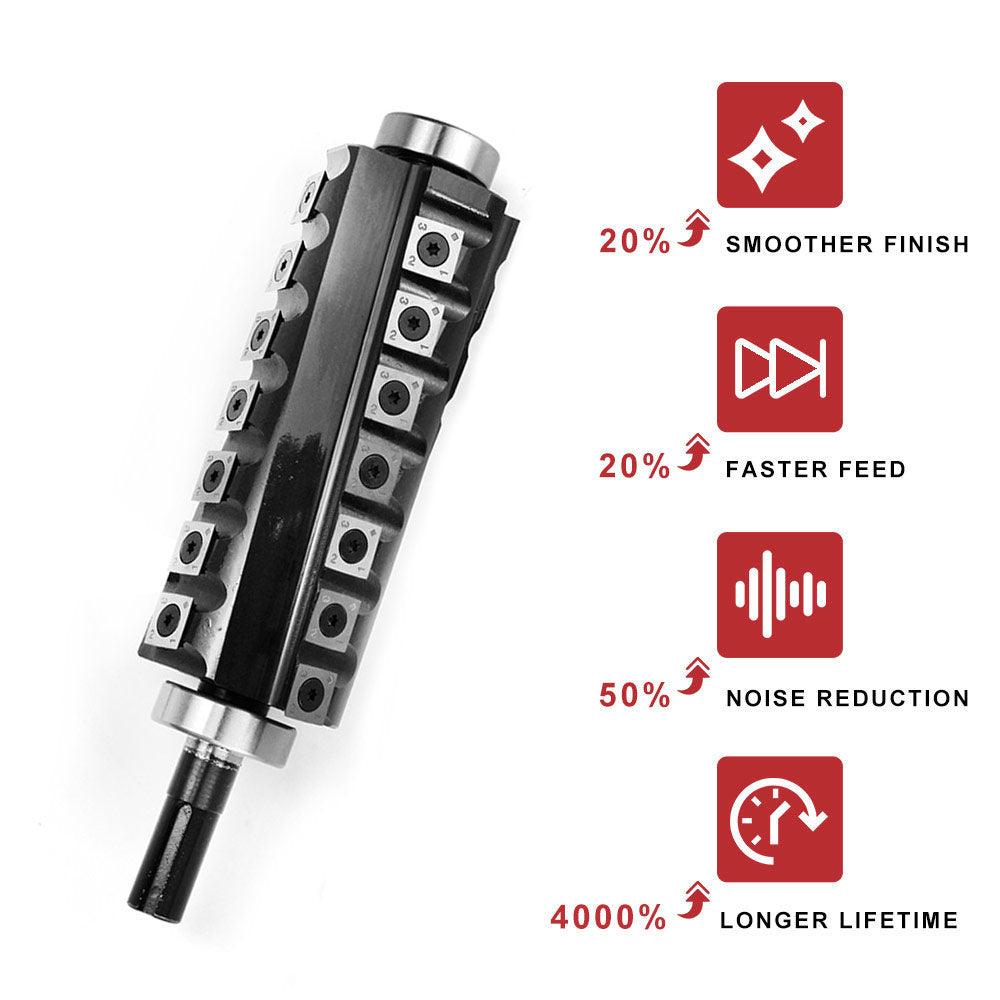

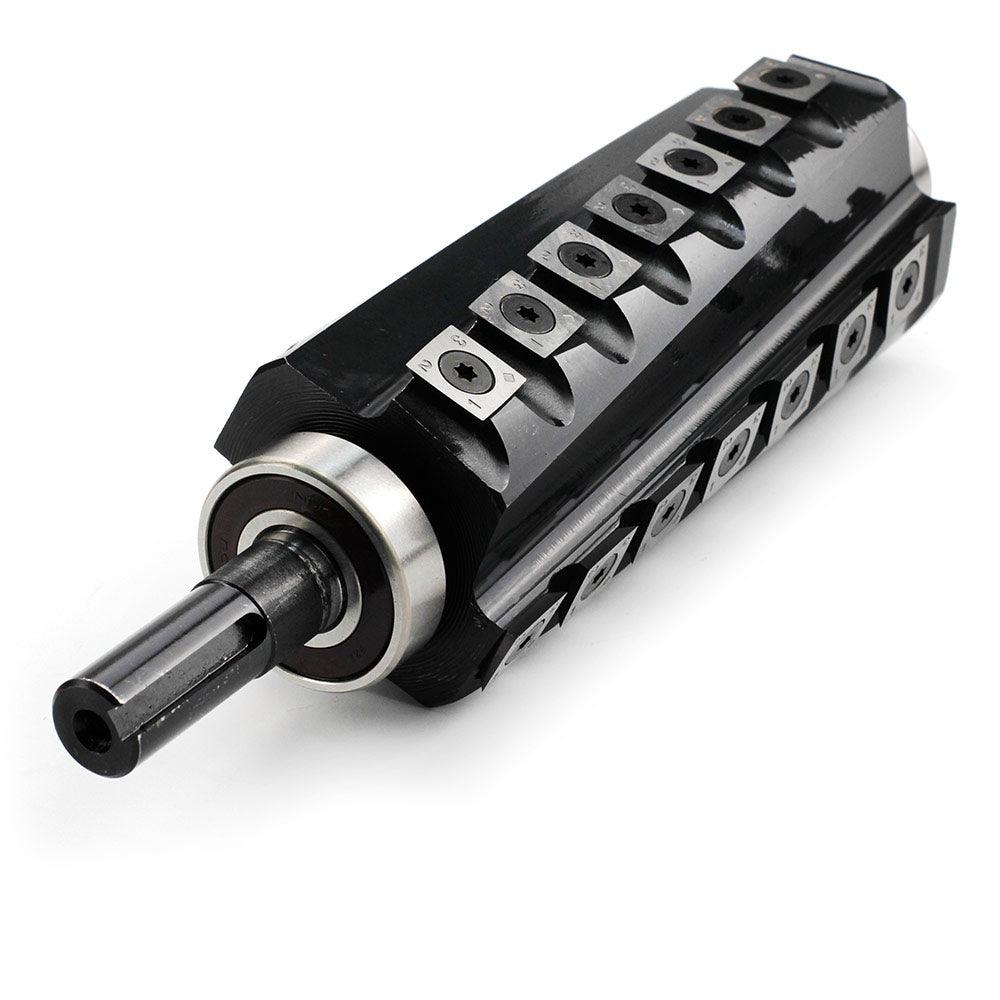

This spiral helical cutter head with 4 cutting wings will take your jointer to the next level, cutting much smoother and reducing more than 50% of the noise. The helical head is designed to perfectly replace the G6/63 cutter head.
Our spiral helical cutterheads are well manufactured by 5-axis CNC machines, resulting in excellent coaxiality. The tungsten carbide insert knives are made from 100% raw material, so compared with HSS knives, we provide you
- Producing a perfect surface finish on the hardest figured wood thanks to the 30 carbide blades.
- 40 times longer lifetime from our proud tungsten carbide inserts.

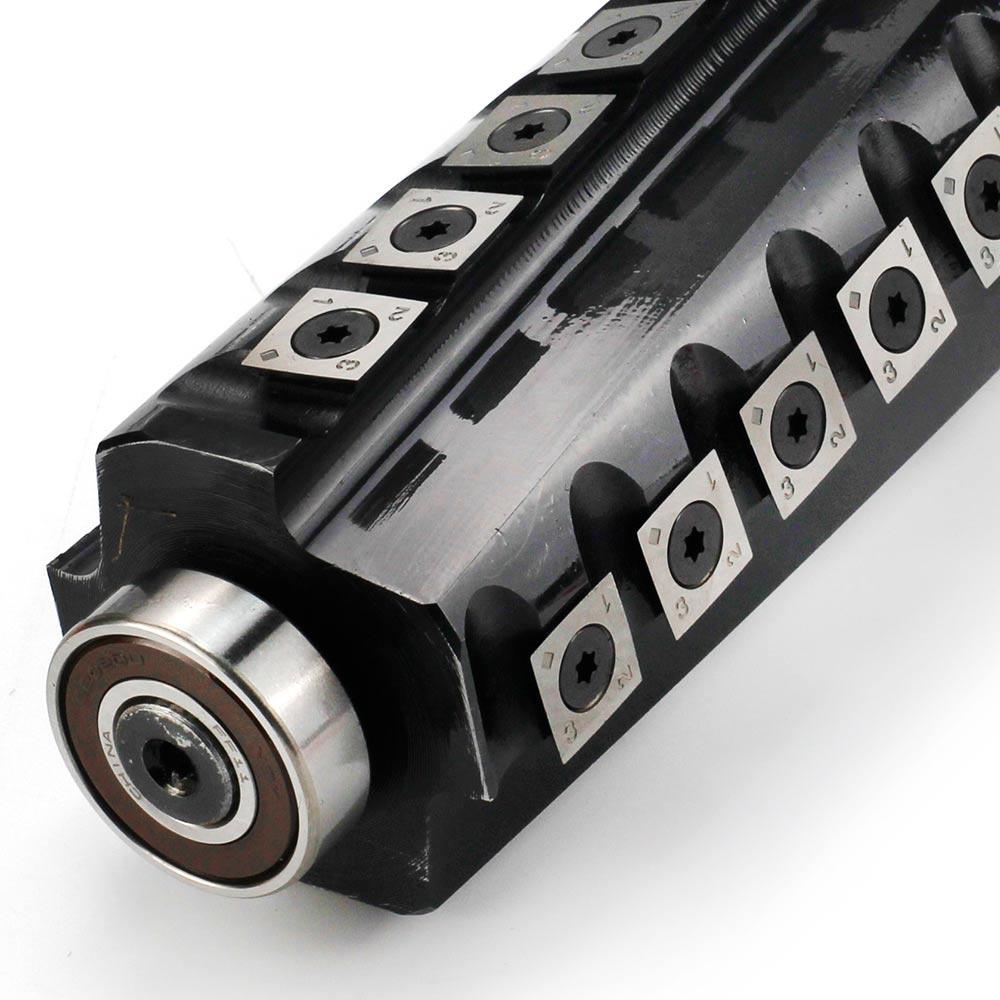

- The carbide inserts are set at an angle, offering a true shear cut.
- Producing much smaller chips and your dust collection system will function more efficiently.
- Changing blades is effortless and does not require adjustment.
- No need to re-sharpen the blades any longer.
- The shear cut virtually eliminates tear-outs and kick-backs.
- Eliminating over 50% of noise.
- Replacement knife: 15x15x2.5mm-R150-4R0.5 blades
- In case you're unable to locate a cutter head that matches your machine model, we also provide an option for a custom cutter head.

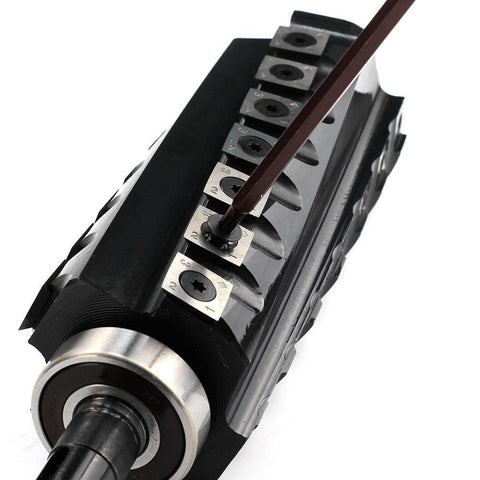

- To properly align the inserts, please tighten them to approximately 6 Newton-meter torque. Please refer to the manual for guidance on installing the carbide insert knives when replacing them.

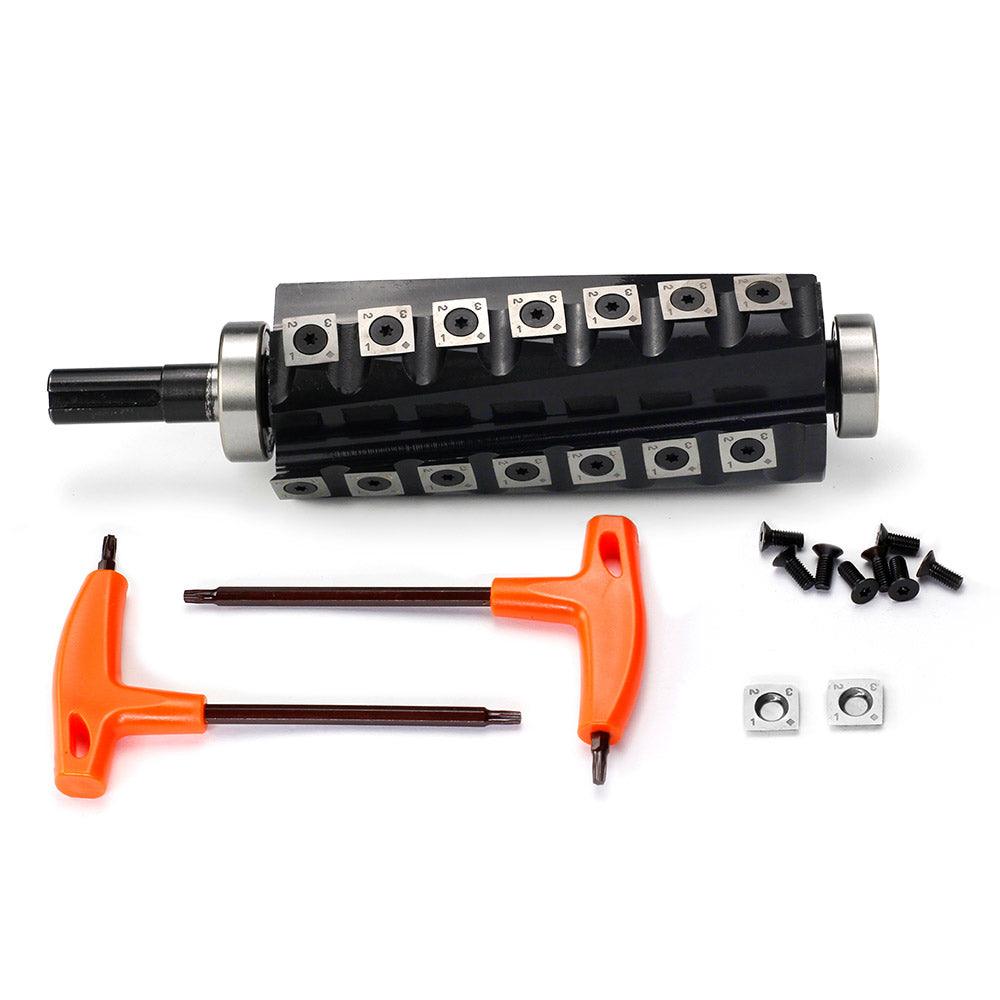

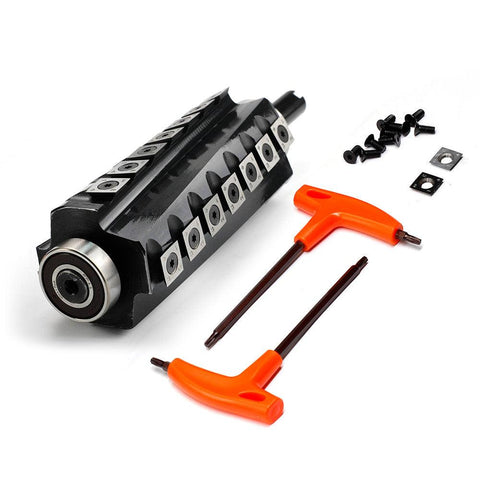

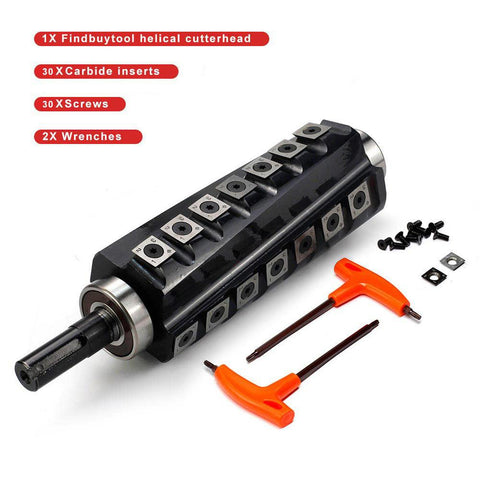

Components Included
- 1 x 6-inch helical cutterhead
- 30 x Carbide insert knives
- 30 x Screws
- 2 x Screw Drivers

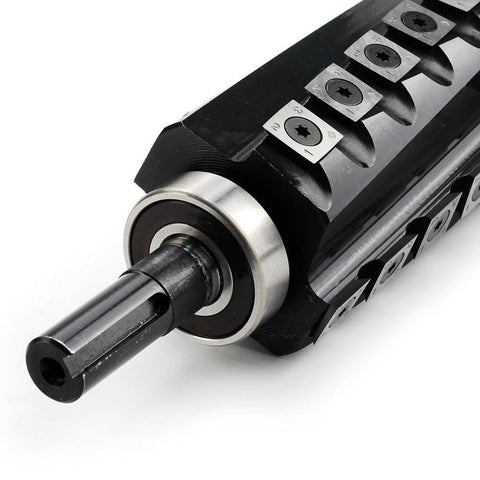

- A pair of bearings (Pre-installed)
Technical information
Technical information
Max Wide of Cut | 6 Inch |
Diameter | 63mm |
Cutting Wings | 4 |
Quantity of Knives | 30 |
Insert Knives | 15x15x2.5mm-30°-R150-4R0.5 |
Application
Application
- Wood
